5' F11 LCI M550dX Intake manifold AGR with flap control

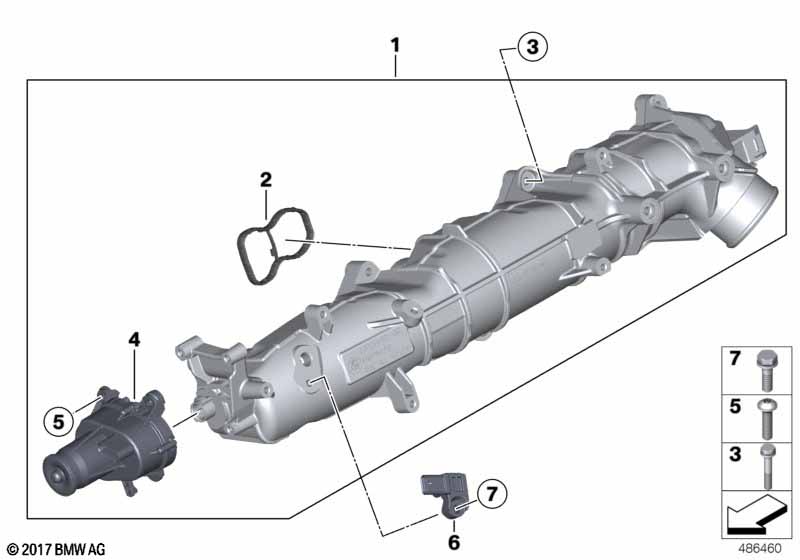

Intake manifold AGR with flap control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold with flap control 1 11618515685
02 Profile-gasket 6 11618507335
03 Hex bolt with washer M6X35-U1-8.8 7 07119904589 $0.47
04 Adjuster unit 1 07/2013 11618506410 ENDED
04 Adjuster unit 1 11618570791
05 Oval head screw M6X20 MK 3 35217685343 $1.93
06 Sensor, charge-air pressure 1 13628514488
07 Hex bolt with washer M6X20 1 07119904527 $0.44
Notes
  • ENDED = the part has been discontinued (no longer available).
