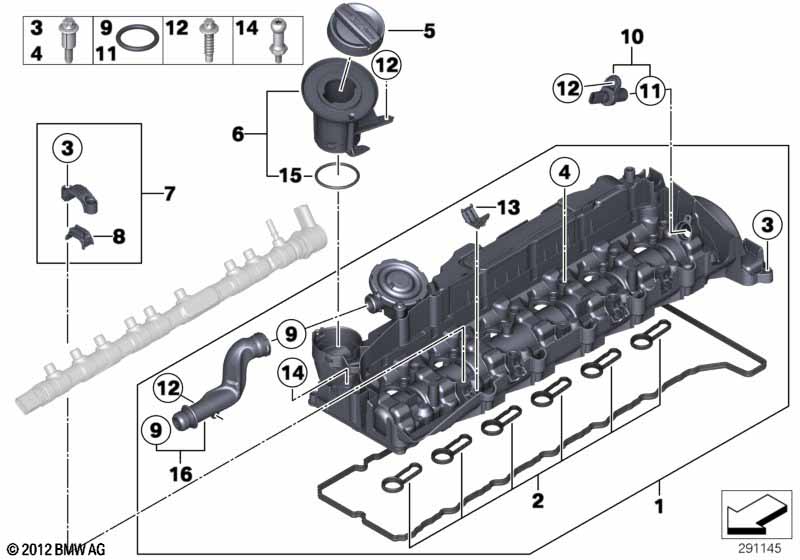

5' F11 LCI M550dX Cylinder head cover

Cylinder head cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cylinder head cover 1 11128510234 +core
02 Gasket set, cylinder head cover 1 11128515732
03 ASA-Bolt 23 11127802605
04 ASA-Bolt 7 11127802606
05 Cap for oil filler 1 01/2015 11128507153 ENDED
05 Cap for oil filler 1 11128655331
06 Oil filler neck 1 11128507609 +core
07 Support 3 11128512187 +core
08 Decoupling element 3 11128517120
09 O-ring 20X2,5 2 11127823944
10 Camshaft position sensor 1 13627803093
11 O-ring 17X2,8 1 13627796699 $1.88
12 Plastic bolt 5,0X19,5 3 09/2013 11127805414 $1.58
12 Torx-bolt for plastic material TS5X20 3 09/2013 51137010365 $0.66
13 Decoupling element 3 11128512188
14 Pin 1 13717802510 $2.73
15 O-ring 51X3,8 1 11127823949
16 Vent pipe 1 11127810740
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
