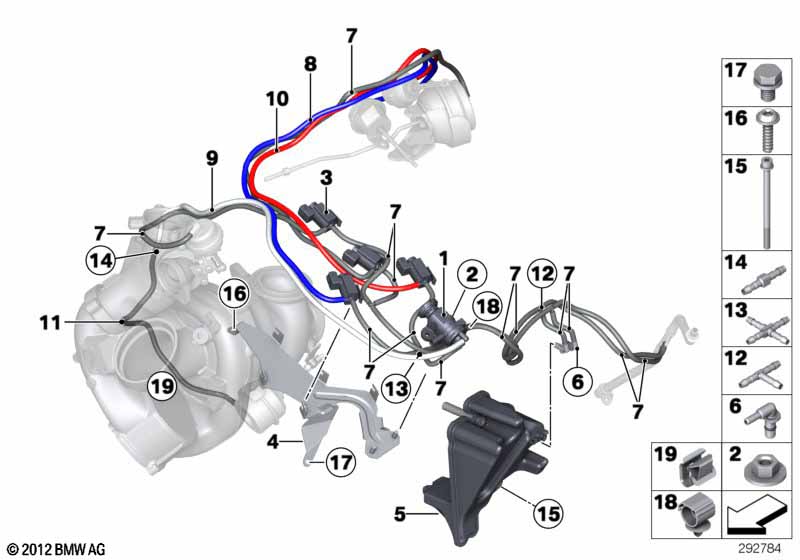

5' F11 LCI M550dX Vacum control-engine-turbo charger

Vacum control-engine-turbo charger
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important!
Note Repair Manual
01 Pressure converter 1 11658509323
02 Hex nut 2 09/2003 11628508395 ENDED
02 Hex nut BM6-8-ZNS3 2 07129904870 $0.36
03 Electr.valve 3 11747810831 $46.70
04 Holder 1 11658507930
05 Vacuum tank 1 11658512680 +core
06 Connector 2 11667808056
07 Vacuum hose black 3,5X2,0 X 11747797129 $17.14
09 Vacuum hose black 3,5X2,0 X 11657803732 $16.43
10 Vacuum hose black 3,5X2,0 X 11657803732 $16.43
12 T-Connector 3 11721439973 $1.07
13 Distribution piece D=4MM 1 11657796093
15 Torx-bolt with washer M6X90-U1-ZNS3 3 07129904075 $2.05
16 Screw for thermoplastic plastics 60X22 1 13627805193 $0.53
17 Hex bolt with washer M6X12-U1-8.8 2 07119904517 $0.36
18 Cable clamp 1 11667805284
19 Clip 1 12521437136 $0.63
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
