5' F11 LCI M550dX Transmission oil cooler line

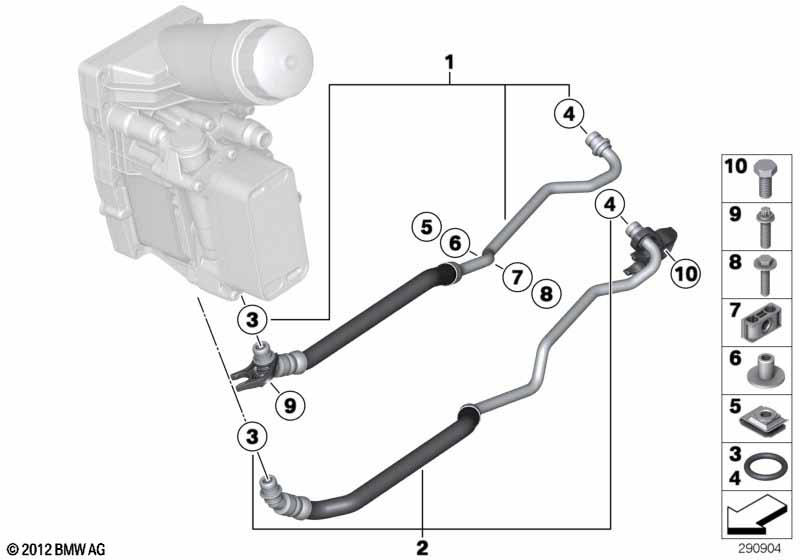

Transmission oil cooler line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission oil cooler line, flow 1 17227823998 +core
02 Transmission oil cooler line, return 1 17227823999 +core
03 O-ring 13,25X2,5 2 17228511461
04 O-ring 13,4X1,78 2 17228573882
05 Clip nut M6-ZNS3 1 11427789289 $1.07
06 Spacer sleeve 1 17227525819 $2.57
07 Bracket oil pipe 1 17227519270 $3.52
08 Hex bolt with washer M6X25-U2 1 07119905871 $0.59
09 Star-socket screw M6X20-U1-8.8 1 07119908574
10 Hex bolt with washer M6X25-U2 1 07119905871 $0.59
Notes
  • +core = plus core charge (possibility of a return of the old part)
