5' F11 LCI M550dX Charge-air cooler

Charge-air cooler

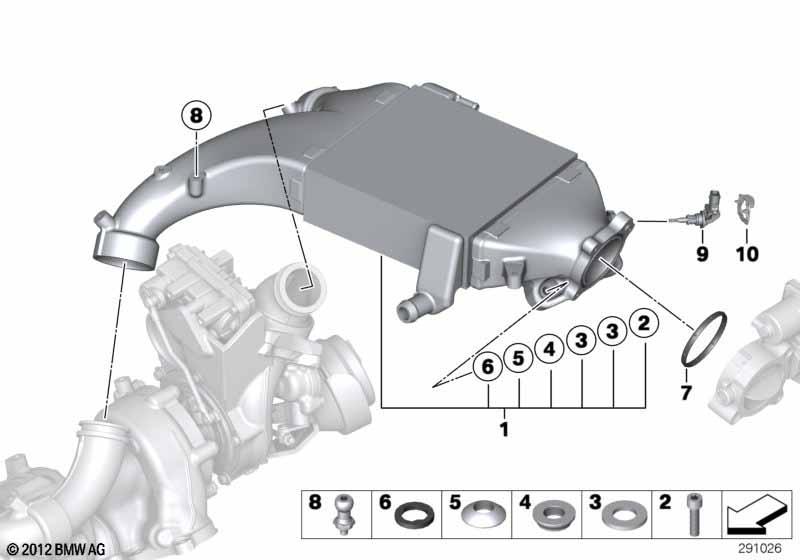

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge-air cooler 1 17517823886
02 ISA screw M8X40-8.8-ZNS3 2 07129904704 $3.68
03 Wave washer 4 17518517270
04 Pad 2 11658517271
05 Ball Cup 2 17518517268
06 Tooth washer 2 17518518183
07 Gasket, throttle body 1 11618515790
08 Pin 2 13717802668 $2.73
09 Intake air temperature sensor 1 13628519445
10 Twist protection 1 11617807095 $0.58
