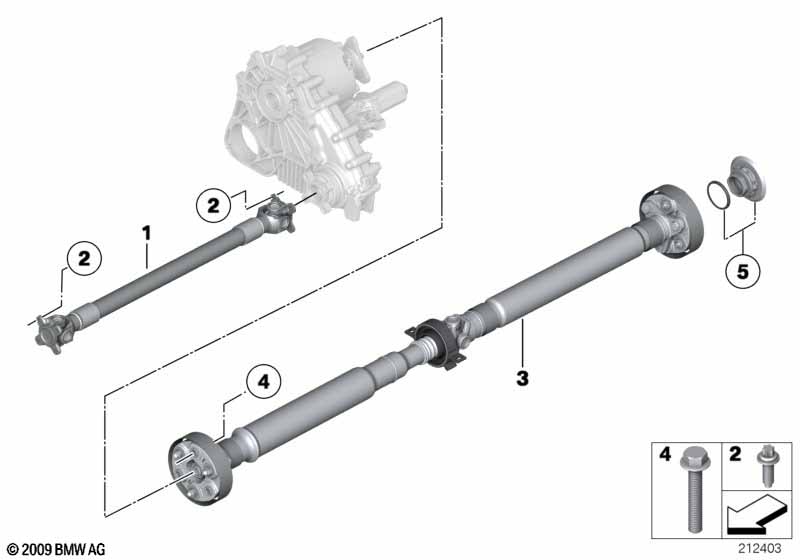

5' F11 LCI M550dX 4-wheel drive shaft/Insert nut

4-wheel drive shaft/Insert nut
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive shaft assy front L=730MM 1 03/2018 26208628043 ENDED
01 Drive shaft assy front 1 26209425906
02 Torx screw with ribs M8X19-ZNS3 8 26117529387 $0.98
03 Drive shaft assy rear L=1424MM 1 09/2015 26107631355 ENDED
only in conjunction with
-- Repair kit insert nut M39X1,5X20 1 09/2015 33127607158
Important!
Note Repair Manual
Replace bolts on transmission!
03 Drive shaft assy rear L=1424MM 1 26108674204
only in conjunction with
-- Repair kit insert nut M39X1,5X20 1 33127607158
Important!
Note Repair Manual
Replace bolts on transmission!
04 Hex bolt M12X1.5X62 ZNS3 3 26117635643
05 Repair kit insert nut M39X1,5X20 1 33127607158
Important!
Note Repair Manual
Notes
  • ENDED = the part has been discontinued (no longer available).
