5' F11 LCI M550dX Power steering pump/Dynamic Drive

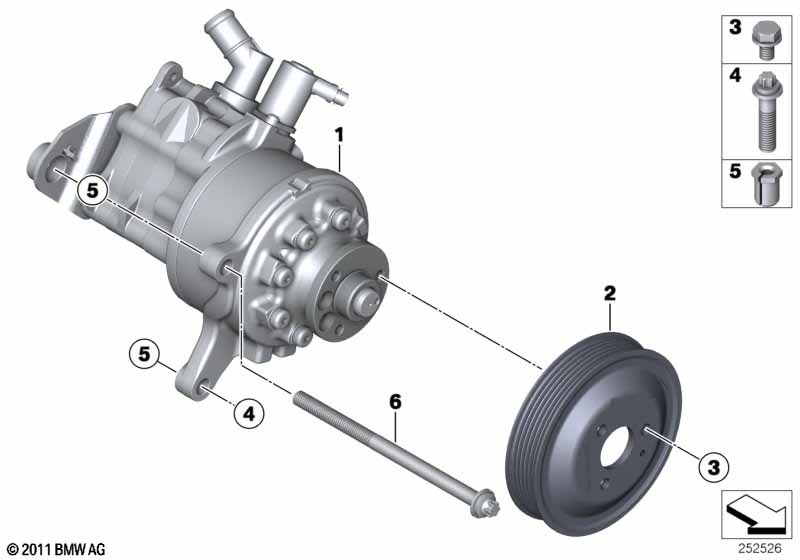

Power steering pump/Dynamic Drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Chassis & suspens. setup"Adaptive Drive"

S2VAA=Yes
01 Tandem pump LFR 540 1 12/2013 32416798667 ENDED, +core
01 Tandem pump LFR 540 1 32416867156
02 Pulley 1 32428519100
03 Hex bolt with washer M8X14-10.9 3 32427574840 $0.62
04 Torx screw M10X40-Z1-8.8 1 09/2003 07129903799 $2.85 ENDED
05 Sliding sleeve with threads M10 2 10/2013 32428513177 ENDED
05 Sliding sleeve with threads M10 2 32428576598
06 ASA bolt with washer M10X165 8.8 1 07129906983
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
