5' F11 LCI M550dX Power steering pump
Sponsored links
Sponsored links

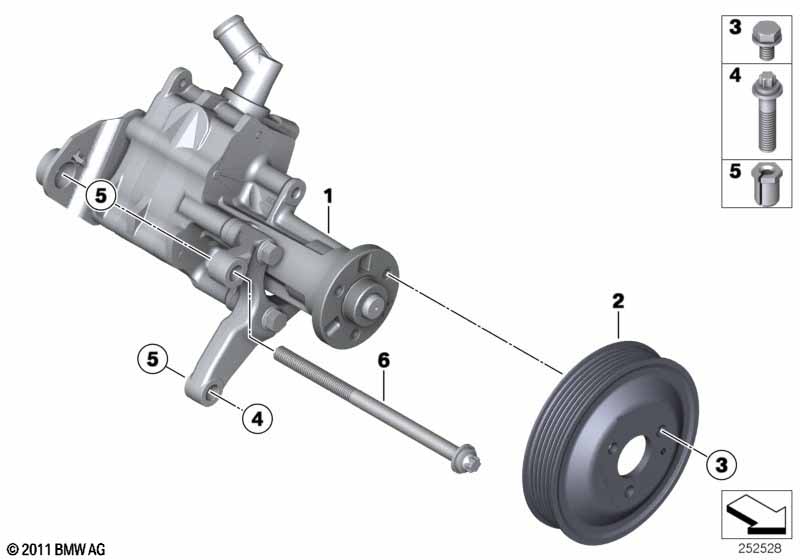

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Power steering pump | LF 41 | 1 | 03/2014 | 32416798665 | ENDED, +core | |||
| 01 | Power steering pump | LF 41 | 1 | 32416867159 | |||||
| 02 | Pulley | STAHL D=130MM | 1 | 32428519873 | |||||
| 03 | Hex bolt with washer | M8X14-10.9 | 3 | 32427574840 | $0.62 | ||||
| 04 | Torx screw | M10X40-Z1-8.8 | 1 | 09/2003 | 07129903799 | $2.85 | ENDED | ||
| 04 | Torx screw | M10X40-Z1-10.9 | 1 | 07129903976 | $1.05 | ||||
| 05 | Sliding sleeve with threads | M10 | 2 | 10/2013 | 32428513177 | ENDED | |||
| 05 | Sliding sleeve with threads | M10 | 2 | 32428576598 | |||||
| 06 | ASA bolt with washer | M10X165 8.8 | 1 | 07129906983 |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
