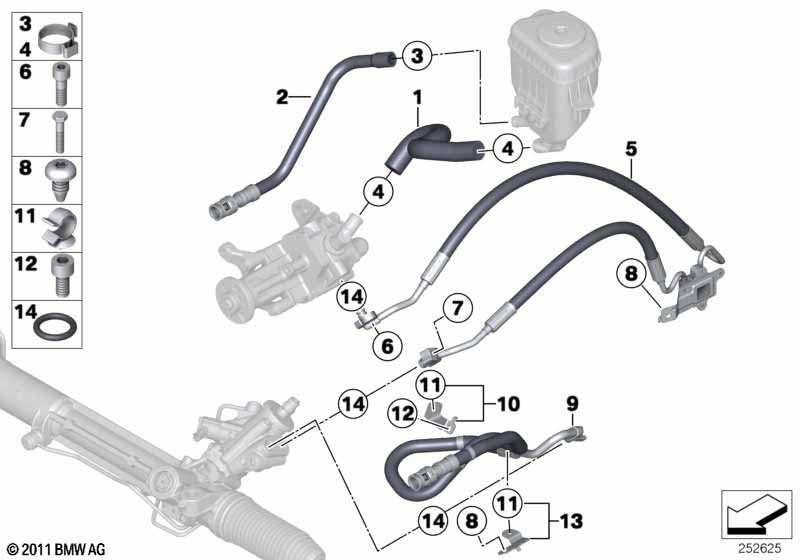

5' F11 LCI M550dX Hydro steering-oil pipes
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Suction pipe | 1 | 32416854897 | ||||||
| 02 | radiator return line | 1 | 32416778503 | ||||||
| 03 | Hose clamp | 1 | 32416751127 | $1.12 | |||||
| 04 | Hose clamp | D= 25MM | 2 | 32416763470 | $1.27 | ||||
| 05 | Expansion hose | 1 | 32416794468 | ||||||
| 06 | Fillister-head screw | M8X25-10.9-ZNS3 | 1 | 04/2006 | 07119905833 | ENDED | |||
| 06 | ISA screw | M8X25-10.9-ZNS3 | 1 | 07129904477 | $2.00 | ||||
| 07 | Hex bolt | M8X40-8.8-ZNS3 | 1 | 07119902910 | $2.05 | ||||
| 08 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | |||||
| 09 | Return pipe | 1 | 32416781834 | ||||||
| 10 | Return pipe bracket | 1 | 32416793466 | ||||||
| 11 | Tubing support | D=17/D=19 | 2 | 13537792950 | $1.08 | ||||
| 12 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | |||||
| 13 | Return pipe bracket | 1 | 32416788781 | ||||||
| 14 | O-ring | 11X1,8 HNBR | 3 | 32416788696 | $5.00 |
Notes
- ENDED = the part has been discontinued (no longer available).
