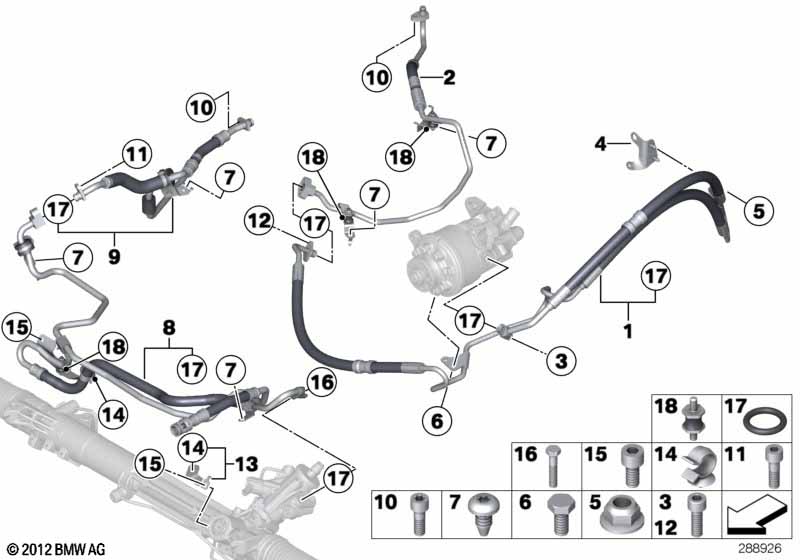

5' F11 LCI M550dX Power steering/oil pipe/dynamic drive

Power steering/oil pipe/dynamic drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Chassis & suspens. setup"Adaptive Drive"

S2VAA=Yes
01 Expansion hose Dynamic Drive 1st part 1 32416797624
02 Expansion hose Dynamic Drive 2nd part 1 32416793594
03 Fillister-head screw M6X18-10.9-ZNS3 2 07119906651
04 Bracket for exp. hose Dynamic Drive 1 32416797230
05 Self-locking hex nut M6-8-ZNNIV SI 2 07119905949 $0.24
05 Self-locking hex nut M6-8-ZNNIV SI 2 07/2012 07119905949 $0.24
06 Hex bolt M6X12-8.8-ZNNIV 2 07119905524 $0.27
07 Torx screw, self-threading M6X13-ZNNIVSI 5 31146786689
08 Return pipe Dynamic Drive PART 1 1 32416781835
09 Return pipe Dynamic Drive PART 2 1 32416799082
10 ISA screw M8X22-ZNNIV SI 2 07129905769 $0.47
11 Fillister-head screw M8X25-10.9-ZNS3 1 04/2006 07119905833 ENDED
12 Fillister-head screw M6X18-10.9-ZNS3 2 07119906651
13 Return pipe bracket 1 32416793466
14 Tubing support D=17/D=19 2 13537792950 $1.08
15 ISA screw M6X12-8.8-ZNNIV 2 03/2009 07129905867
16 Hex bolt M8X40-8.8-ZNS3 1 07119902910 $2.05
17 O-ring 11X1,8 HNBR 4 32416788696 $5.00
18 Rubber Mounting H=17 3 32416769256
Notes
  • ENDED = the part has been discontinued (no longer available).
