5' F11 LCI M550dX Floor panel trunk/wheel housing rear

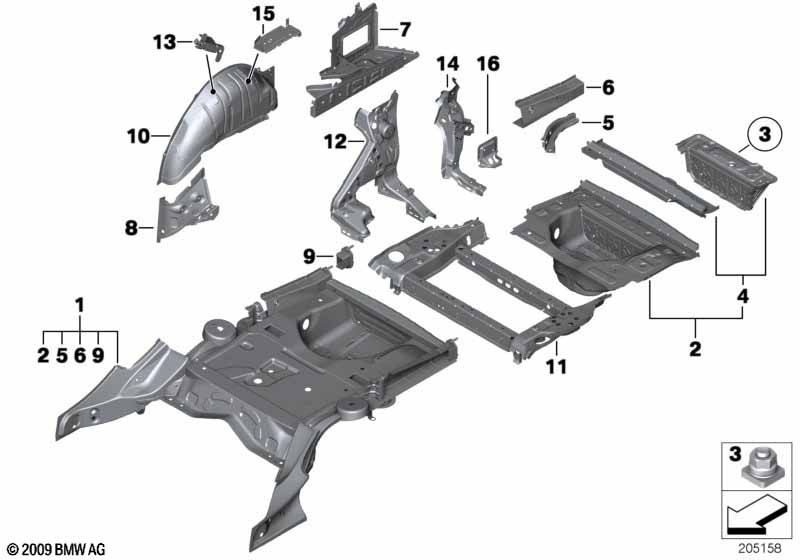

Floor panel trunk/wheel housing rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trunk floor 1 41117261501
only in conjunction with
-- Cover lid 1 41127003126
Required for repair
-- Reinforcement for side member, left 1 41127228413
Required for repair
-- Reinforcement for side member, right 1 41127228414
Required for repair
-- Support for frame side member, left 1 41007248135
Required for repair
-- Support for frame side member, right 1 41007248136
Required for repair
-- Bracket for DC/DC converter 1 41007332650
Required for repair
-- Seam sealer 300ML 1 83422409985
02 Luggage compartment floor, rear 1 41127290105
only in conjunction with
-- Cover lid 1 41127003126
Required for repair
-- Bracket for DC/DC converter 1 41007332650
Required for repair
-- Seam sealer 300ML 1 83422409985
03 Earth pin M8X12 X 07147182215
03 Earth pin M6X12 X 41118367249 $1.85 ENDED
03 Earth pin M6X12 X 41248185432
04 End piece for cargo area floor 1 41127248124
05 Reinforcement for side member, left 1 41127245547
05 Reinforcement for side member, right 1 41127245548
06 Left side member extension 1 41117245549
06 Right side member extension 1 41117245550
07 Trunk floor left 1 41137259765
07 Trunk floor right 1 41137259766
08 End plate, side member, left 1 41117228435
08 End plate, side member, right 1 41117228436
09 Mount, bumper 2 41107175173 $43.56
10 Rear left wheelhouse, inner half 1 41007259561
10 Rear right wheelhouse, inner half 1 41007259562
11 Support structure for cargo area floor 1 41007261528
13 Bracket activated Carbon container 1 41147245546
14 Support, wheelhouse left 1 41147261655
14 Support, wheelhouse right 1 41147261656
15 Support, safety belt, left 1 41137259557
15 Support, safety belt, right 1 41137259558
16 Reinforcement for side member, left 1 41127263809
16 Reinforcement for side member, right 1 41127263810
Notes
  • ENDED = the part has been discontinued (no longer available).
