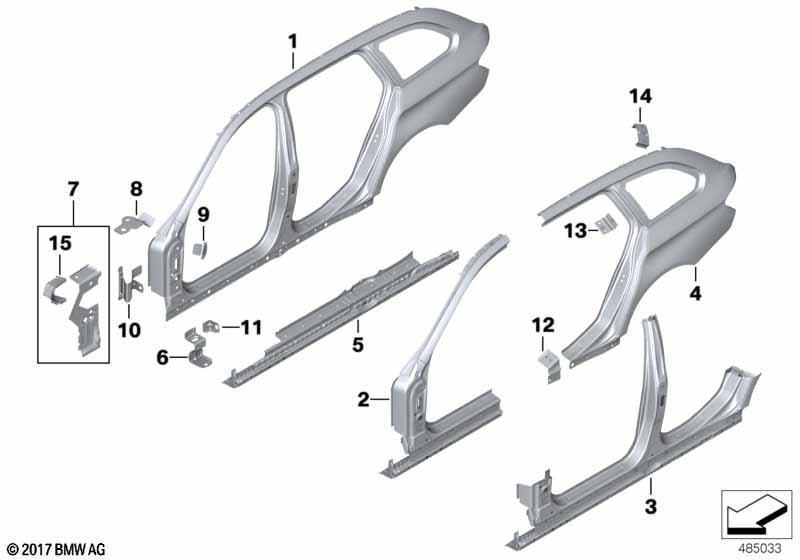

5' F11 LCI M550dX Body-side frame

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Body-side frame left 1 41217240539
Required for repair
01 Body-side frame right 1 41217240540
Required for repair
-- Seam sealer 300ML 1 83422409985
-- Positioning aid T-bolt 1 41212460168
-- T-welding stud L=5,4MM 20 41318412638
-- Hexagon screw with taper M12X35 4 07148499258
02 Left exterior column A 1 41217240545
Required for repair
02 Column A exterior right 1 41217240546
Required for repair
-- Seam sealer 300ML 1 83422409985
-- Positioning aid T-bolt 1 41212460168
-- T-welding stud L=5,4MM 20 41318412638
-- Hexagon screw with taper M12X35 2 07148499258
03 Column B with left rocker panel 1 41217240509
Required for repair
03 Column B with right rocker panel 1 41217240510
Required for repair
-- Seam sealer 300ML 1 83422409985
-- Hexagon screw with taper M12X35 2 07148499258
Performed using adhesive bonding/
riveting repair method.
04 Left rear side panel 1 41217240517
Required for repair
-- Blind rivet N3 11 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 13 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 13 83192457307
-- Positioning aid T-bolt 1 41212460168
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- T-welding stud L=5,4MM 10 41318412638
-- Reinforcement plate, C-pillar, left 1 41219240053
-- Reinforcement plate, D-pillar, left 1 41219240061
-- Reinforcement plate, rocker panel, left 1 41219240147
04 Right rear side panel 1 41217240518
Required for repair
-- Blind rivet N3 11 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 13 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 13 83192457307
-- Positioning aid T-bolt 1 41212460168
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- T-welding stud L=5,4MM 10 41318412638
-- Reinforcement plate, C-pillar, right 1 41219240054
-- Reinforcement plate, D-pillar, right 1 41219240062
-- Reinforcement plate, rocker panel, right 1 41219240148
05 Left door sill 1 41217240497
05 Right door sill 1 41217240498
06 Bracket, side panel, entrance 2 41357240499
07 Joint, side frame, left 1 41107240505
07 Joint, side frame, right 1 41107240506
08 Bracket, side panel column A left 1 41357240503
08 Bracket, side panel, column A right 1 41357240504
09 Fender bracket 2 41217111355 $2.28
10 Bracket, side panel, centre left 1 41357240501
10 Bracket, side panel, centre right 1 41357240502
11 Bracket, side panel column A 2 01/2025 41117174365 $1.85
Required for repair
-- Blind rivet N3 4 01/2025 83190301421 $0.31
-- Body adhesive K5 50 ML 2 01/2025 83192158654
-- Cleaner R1 100ML 2 01/2025 83192211217 EBA 2446652
12 Reinforcement plate, rocker panel, left 1 41219240147
12 Reinforcement plate, rocker panel, right 1 41219240148
13 Reinforcement plate, C-pillar, left 1 41219240053
13 Reinforcement plate, C-pillar, right 1 41219240054
14 Reinforcement plate, D-pillar, left 1 41219240061
14 Reinforcement plate, D-pillar, right 1 41219240062
15 Support, A-pillar, left 1 41107263703
15 Support, A-pillar, right 1 41107263704
Notes
  • EBA = Einbauanleitung (Installation instructions)
