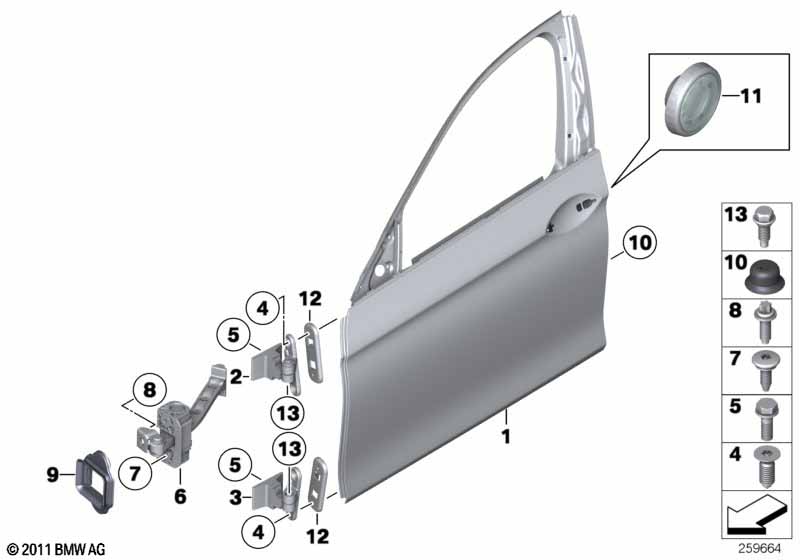

5' F11 LCI M550dX Front door-hinge/door brake

Front door-hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Observe instructions in Repair Manual
REP -65 77 740!
01 Door front left 1 41007206107
01 Door front right 1 41007206108
02 Left upper front door hinge 1 41517259591
02 Right upper front door hinge 1 41517259592
03 Left lower front door hinge 1 41517259593
03 Right lower front door hinge 1 41517259594
04 Torx-countersunk head screw ISA M8X28 8 07147184164 $0.65
05 Hexagon screw with taper M12X39 4 01/2018 07147184165 $1.55
05 Hexagon screw with taper M12X35 4 07148499258
06 Front door brake 2 51217182005
07 Torx-bolt with washer ISA M6X10 4 07147184168 $0.62
08 Torx-bolt with washer ASA M8X22 2 07147248303 $0.60
09 Door brake gasket 2 51217182007
10 Protection cap SCHWARZ 2 51218177670 $0.33
11 Reflector RUBIN 2 51717161921 $3.27
12 Compensating plate 1.0MM X 51227203561
13 Hexagon screw with flange M8X20 4 51217223086
