5' F11 LCI M550dX Rear door - hinge/door brake

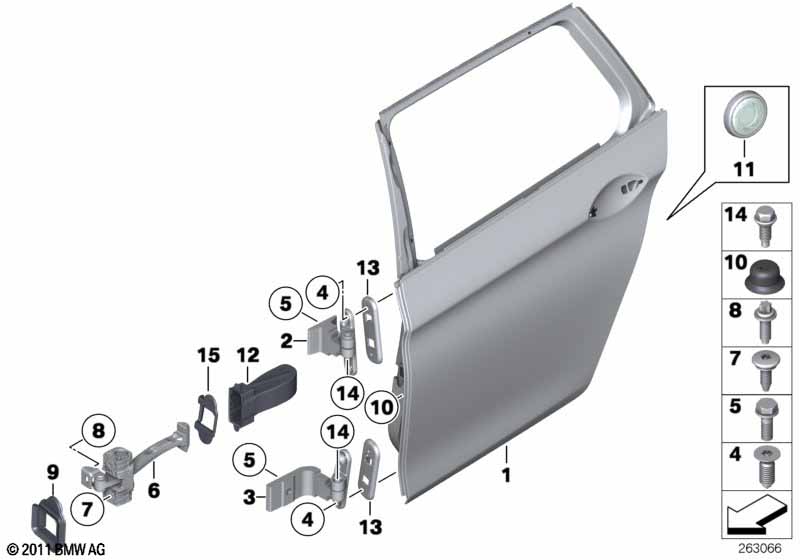

Rear door - hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door rear left 1 41007206119
01 Door rear right 1 41007206120
02 Left upper rear door hinge 1 41527259595
02 Right upper rear door hinge 1 41527259596
03 Left lower rear door hinge 1 41527259597
03 Right lower rear door hinge 1 41527259598
04 Torx-countersunk head screw ISA M8X29.5 8 07147261771
05 Hexagon screw with taper M12X39 4 01/2018 07147184165 $1.55
05 Hexagon screw with taper M12X35 4 07148499258
06 Rear door brake 2 51227182019
07 Torx-bolt with washer ISA M6X10 4 07147184168 $0.62
08 Torx-bolt with washer ASA M8X22 2 07147248303 $0.60
09 Door brake gasket 2 51217182007
10 Protection cap SCHWARZ 2 51218177670 $0.33
11 Reflector RUBIN 2 51717161921 $3.27
12 Cover, door brake, rear 2 51227185637
13 Compensating plate 1.0MM X 51227203561
14 Hexagon screw with flange M8X20 4 51217223086
15 Gasket door brake rear 2 51227257194
