5' F11 LCI M550dX Body-side frame-parts

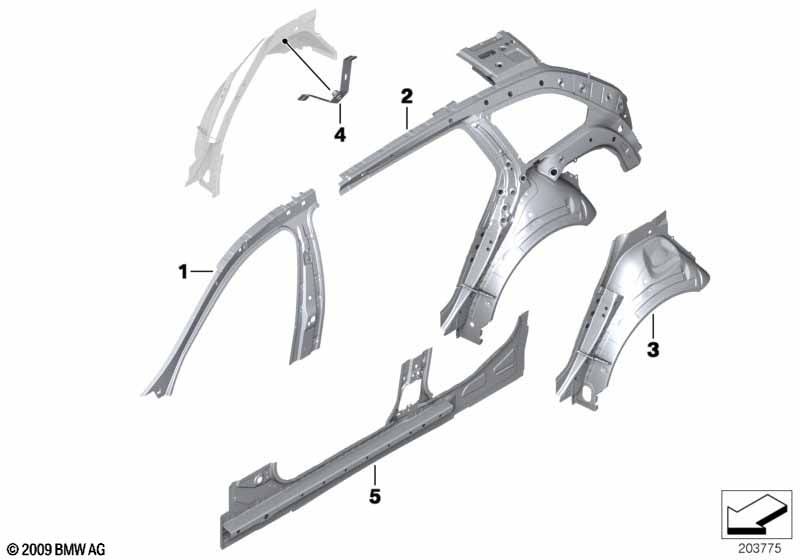

Body-side frame-parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side frame, inside, front left 1 41217240451
01 Side frame, inside, front right 1 41217240452
02 Side frame, inside, rear left 1 41217240463
02 Side frame, inside, rear right 1 41217361408
03 Wheel arch outer rear left 1 41217240467
03 Wheel arch outer rear right 1 41217356206
04 Holder, activated carbon container, top 1 41217240448
04 Holder,activated carbon container,bottom 1 41217240471
05 Side member, inner left 1 41007259585
05 Side member, inner right 1 41007259586
