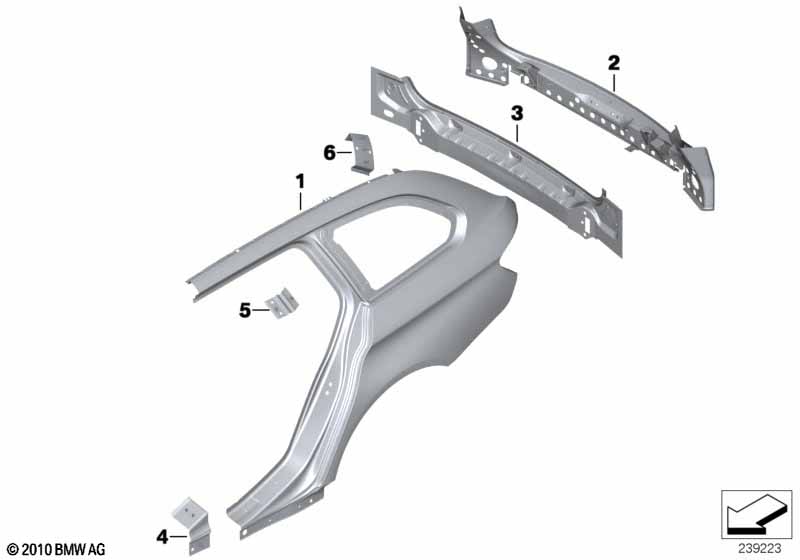

5' F11 LCI M550dX Side panel/tail trim

Side panel/tail trim
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Performed using adhesive bonding/
riveting repair method.
01 Left rear side panel 1 41217240517
Required for repair
-- Blind rivet N3 11 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 13 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 13 83192457307
-- Positioning aid T-bolt 1 41212460168
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- T-welding stud L=5,4MM 10 41318412638
-- Reinforcement plate, C-pillar, left 1 41219240053
-- Reinforcement plate, D-pillar, left 1 41219240061
-- Reinforcement plate, rocker panel, left 1 41219240147
01 Right rear side panel 1 41217240518
Required for repair
-- Blind rivet N3 11 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Punch rivet N5 13 83192158079 $0.39
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 13 83192457307
-- Positioning aid T-bolt 1 41212460168
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- T-welding stud L=5,4MM 10 41318412638
-- Reinforcement plate, C-pillar, right 1 41219240054
-- Reinforcement plate, D-pillar, right 1 41219240062
-- Reinforcement plate, rocker panel, right 1 41219240148
02 Interior tail trim 1 41347240441
Required for repair
-- Blind rivet N3 43 83190301421 $0.31
-- Screw SF PLUS M5X15 2 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 18 83192457307
-- Outer panel tail trim 1 41347240439
03 Outer panel tail trim 1 41347240439
only in conjunction with
-- Blind rivet N3 37 83190301421 $0.31
-- Screw SF PLUS M5X15 2 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
-- Punch rivet N4 18 83192457307
04 Reinforcement plate, rocker panel, left 1 41219240147
04 Reinforcement plate, rocker panel, right 1 41219240148
05 Reinforcement plate, C-pillar, left 1 41219240053
05 Reinforcement plate, C-pillar, right 1 41219240054
06 Reinforcement plate, D-pillar, left 1 41219240061
06 Reinforcement plate, D-pillar, right 1 41219240062
Notes
  • EBA = Einbauanleitung (Installation instructions)
