5' F11 LCI M550dX Carrier, rear

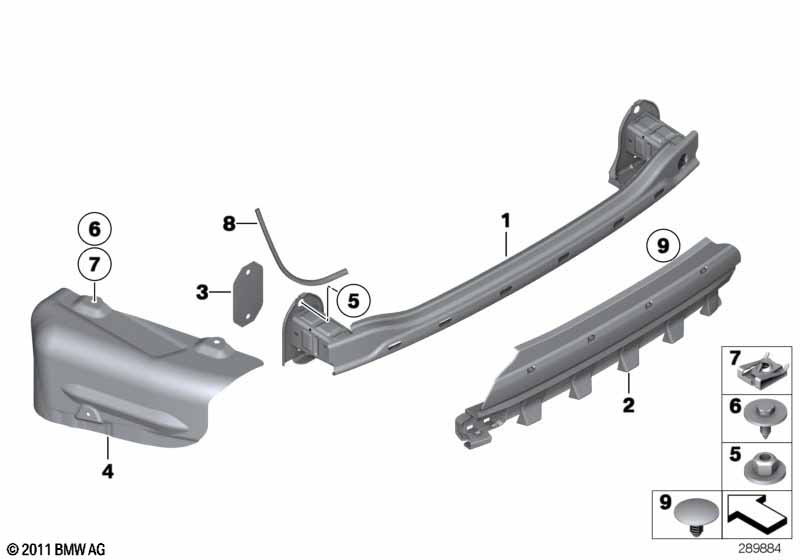

Carrier, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Carrier, bumper rear 1 51127184769
02 Adapter 1 51127299972
03 Gasket 2 51127183888 $0.40
04 Heat insulation bumper, rear left 1 51487207269
04 Sound insulation, rear right bumper 1 51487207270
05 Hex nut M12X1,5-10 ZNS3 4 07119906050 $1.09
06 Hex bolt TS5X17 SW8 D=22 2 07149126886
07 C-clip nut 2 51717065773
08 Luggage cover 1 51127304450
For vehicles with
Comfort access
or
M Driver's Package
or
Trailer coupling preparation

S322A=Yes

S7MEA=Yes

S8SLA=Yes
09 Plug, black D=5MM 7 52208133466 $0.50
