5' F11 LCI M550dX Sealing cap/plug

Sealing cap/plug

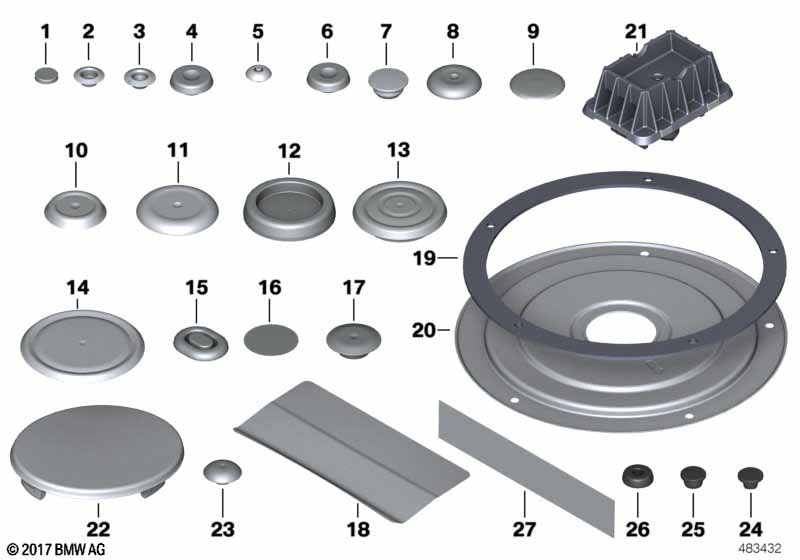

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i D = hole-circle diameter in the
body
01 Blind plug D=6MM 2 51711904603 $0.32
02 Blind plug D=10MM 4 51718226004 $0.23
03 Blind plug D=11MM 2 51718235734 $0.32
04 Blind plug D=12MM X 07147127539 $0.26
05 Blind plug D=6,5MM 2 07147221349
06 Blind plug D=15MM X 07147127540 $0.26
07 Blind plug D=16MM 1 51718257286 $0.40
08 Blind plug D=20MM X 07147140850 $0.19
08 Blind plug D=20MM 2 51718174490 $0.56
09 Blind plug D=22MM 2 51711855009 $0.50
10 Blind plug D=25MM X 51717175886 $0.63
11 Blind plug D=35MM X 07147140849 $0.73
12 Blind plug D=40MM 3 07147131742 $1.28
13 Blind plug D=40MM 1 51712258519 $0.89
14 Blind plug D=54MM 2 61138353500 $1.12
15 Blind plug 106X76MM 2 07147019823 $1.43
15 Blind plug 18X24MM 2 51710588794 $0.85
15 Blind plug 14X25.5MM 4 51711863869 $0.94
16 Sealing film PUR, D=30MM 9 51711922189 $0.82
17 Sealing plug D=20 8 07147222097 $1.12
18 Heat protection 165X75MM 1 51237221223 $14.24 ENDED
19 seal, cap 1 51717176319
20 cover, floor panel rear 1 51717176320
21 Support lifting platform 4 51717237195 $13.80 ENDED
21 Support lifting platform 4 51717123311 $13.42
23 Blind plug with hotmelt D=12MM X 07147131129 $0.49
24 Blind plug D=8MM 4 61139217728
25 Blind plug D=9.0MM 2 07147133560 $0.38
26 Blind plug D=10MM 4 61139217729
27 Protective foil vehicle identif.number 1 07147220652
Notes
  • ENDED = the part has been discontinued (no longer available).
