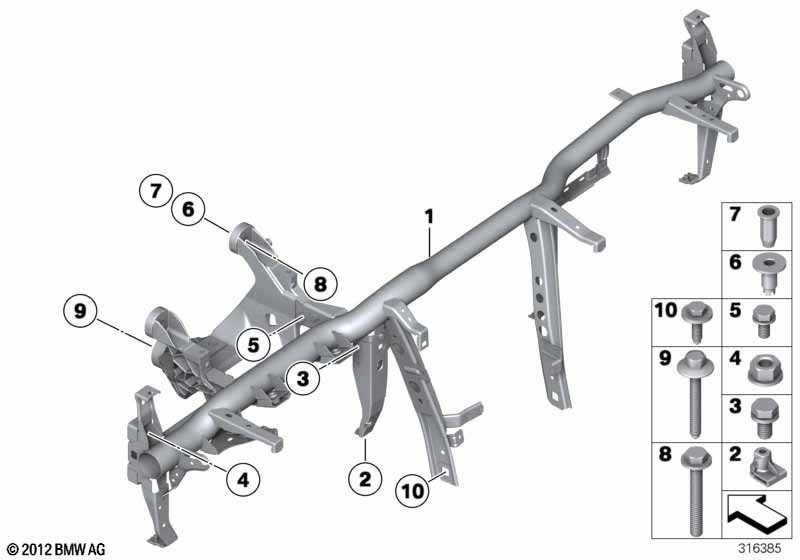

5' F11 LCI M550dX Carrier instrument panel

Carrier instrument panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting tube, instrument panel 1 51459195219
02 Clip X 07149200940
03 Hex bolt with washer M6X12-U1 4 07119904511 $0.62
04 Hex nut with plate M8 4 07149202825
05 Hex bolt with washer M8X16 4 07119905528 $0.62
06 Compensator bush 2 51459177499
07 Blind rivet nut, flat headed M12X1,5 LH 2 07147135246 $4.60
08 Hex bolt with washer M8X60 2 11/2016 07149237048
08 Hex bolt with washer M8X60-8.8-ZNS3 2 11/2016 22316779982 $1.87
09 Hex bolt M8X58 1 07149180628
10 Hex bolt with washer M8X30 2 07143428484 $1.13
