5' F11 LCI M550dX Trim and seals for door, front

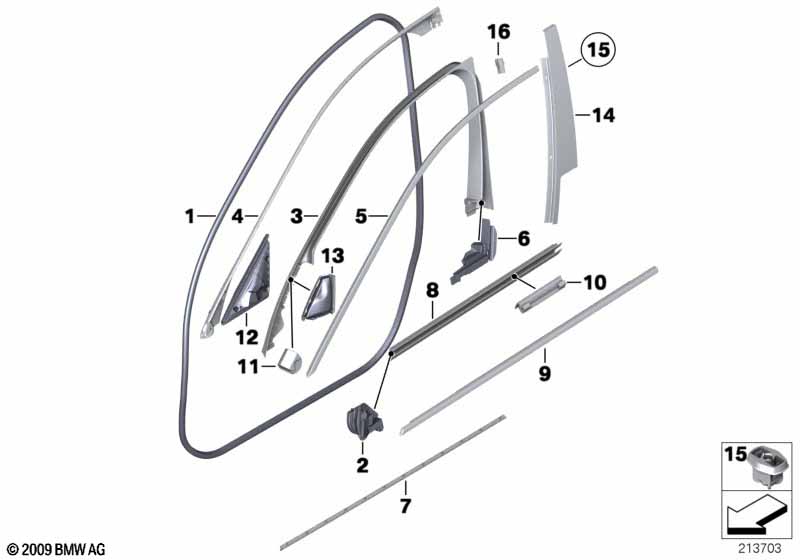

Trim and seals for door, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seal for door, front 2 51767182269
02 Seal, end panel, A-column, left 1 51337224549
02 Seal, end panel, A-column, right 1 51337224550
03 Cover, window frame, door front left 1 51337182011
03 Cover, window frame, door front right 1 51337182012
For vehicles with
National version Korea
and
Country specification, Singapore
and
CKD installation, Indonesia
and
CKD installation, Malaysia

L802A=No

L833A=No

S9C3A=No

S9C4A=No
04 Seal, door seam, roof front left 1 51767182285
04 Seal, door seam, roof front right 1 51767182286
For vehicles with
National version Korea
or
Country specification, Singapore
or
CKD installation, Indonesia
or
CKD installation, Malaysia

L802A=Yes

L833A=Yes

S9C3A=Yes

S9C4A=Yes
04 Seal, door seam, roof front left 1 51767355201
04 Seal, door seam, roof front right 1 51767355202
05 Trim, window frame, top, door front left 1 51337182281
05 Trim, window frame, upper, door fr right 1 51337182282
For vehicles with
Indiv. Ext. Line, burnished aluminium

S3MBA=Yes
05 Trim, window frame, top, door front left ALU SATINIERT 1 08/2013 51338049195 ENDED
05 Trim, window frame, top, door front left ALU SATINIERT 1 02/2014 51334817289 ENDED
05 Trim, window frame, top, door front left ALU SATINIERT 1 51337392173
05 Trim, window frame, upper, door fr right ALU SATINIERT 1 08/2013 51338049196 ENDED
05 Trim, window frame, upper, door fr right ALU SATINIERT 1 02/2014 51334817290 ENDED
05 Trim, window frame, upper, door fr right ALU SATINIERT 1 51337392174
For vehicles with
High gloss shadow line

S760A=Yes
05 Trim, window frame, top, door front left GLANZSCHWARZ 1 51337209727
05 Trim, window frame, upper, door fr right GLANZSCHWARZ 1 51337209728
06 Seal, end panel, B-column, left 1 51337182279
06 Seal, end panel, B-column, right 1 51337182280
07 Seal, door joint, door front lower 2 51337182283
08 Inner left window channel cover 1 51337182277
08 Inner right window channel cover 1 51337182278
For vehicles with
Indiv. Ext. Line, burnished aluminium

S3MBA=Yes
09 Channel cover,exterior,door, front left ALU SATINIERT 1 08/2013 51338049193 ENDED
09 Channel cover,exterior,door, front left ALU SATINIERT 1 51334817293 ENDED
09 Channel cover,exterior,door, front right ALU SATINIERT 1 08/2013 51338049194 ENDED
09 Channel cover,exterior,door, front right ALU SATINIERT 1 51334817294 ENDED
For vehicles with
High gloss shadow line

S760A=Yes
09 Channel cover,exterior,door, front left GLANZSCHWARZ 1 51337209725
09 Channel cover,exterior,door, front right GLANZSCHWARZ 1 51337209726
For vehicles with
Modern Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

S3MBA=No

S760A=No
09 Channel cover,exterior,door, front left 1 51337182275
09 Channel cover,exterior,door, front right 1 51337182276
10 Window channel strip, outer, door, front L = 118MM 2 51337269743
11 Seal for mirror baseplate, inside 2 51337257193
12 Seal, outer left mirror triangle 1 04/2012 51337329753
12 Seal, outer right mirror triangle 1 04/2012 51337329754
13 Cover, mirror baseplate, left 1 51337182013
13 Cover, mirror baseplate, right 1 51337182014
For vehicles with
Bang&Olufsen High End Surround Sound

S6F2A=Yes
13 Cover f left loudspeaker tweeter SCHWARZ 1 07/2012 51417337775 ENDED
13 Cover f left loudspeaker tweeter 1 07/2012 51417318797
13 Cover f right loudspeaker tweeter SCHWARZ 1 07/2012 51417337776 ENDED
13 Cover f right loudspeaker tweeter 1 07/2012 51417318798
For vehicles with
Harman/Kardon Surround Sound system

S688A=Yes
13 Cover, mirror baseplate, left HARMAN / KARDON 1 51337380659
13 Cover, mirror baseplate, right HARMAN / KARDON 1 51337380660
For vehicles with
HiFi speaker system
or
HiFi System Professional DSP

S676A=Yes

S677A=Yes
13 Cover, mirror baseplate, left 1 51337275779
13 Cover, mirror baseplate, right 1 51337275780
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=No

S3MBA=No

S760A=No
14 Cover, column B, door, front left 1 51337182271
14 Cover, column B, door, front right 1 51337182272
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=Yes

S3MBA=Yes

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=Yes

S3MBA=Yes

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=Yes

S3MBA=No

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=Yes

S3MBA=No

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=No

S3MBA=Yes

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=No

S3MBA=Yes

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=No

S3MBA=No

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=Yes

P7S2A=No

S3MBA=No

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=Yes

S3MBA=Yes

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=Yes

S3MBA=Yes

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=Yes

S3MBA=No

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=Yes

S3MBA=No

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=No

S3MBA=Yes

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=No

S3MBA=Yes

S760A=No
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
For vehicles with
Modern Line
and
Luxury Line
and
Indiv. Ext. Line, burnished aluminium
and
High gloss shadow line

P7S1A=No

P7S2A=No

S3MBA=No

S760A=Yes
14 Cover, column B, door, front left GLANZSCHWARZ 1 51337209723
14 Cover, column B, door, front right GLANZSCHWARZ 1 51337209724
15 Clip, cover for column B 8 51337177961
16 Stopper left 1 51337266795
16 Stopper right 1 51337266796
Notes
  • ENDED = the part has been discontinued (no longer available).
