5' F11 LCI M550dX Trim and seals for door, rear

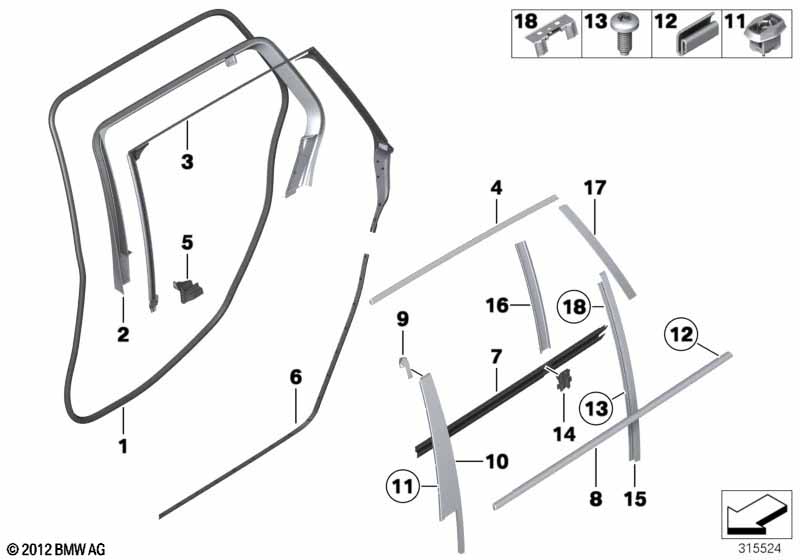

Trim and seals for door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seal for door, rear 2 51767199770
02 Cover, window frame, door rear left 1 51357182055
02 Cover, window frame, door rear right 1 51357182056
For vehicles with
Roller sun vizor, rear lateral

S416A=Yes
02 Cover, window frame, door rear left SSR 1 51357199313
02 Cover, window frame, door rear right SSR 1 51357199314
03 Seal, door seam, roof, rear left 1 51767199783
03 Seal, door seam, roof, rear right 1 51767199784
04 Finisher window frame top RL door 1 51357199781
04 Finisher window frame top RR door 1 51357199782
For vehicles with
Indiv. Ext. Line, burnished aluminium

S3MBA=Yes
04 Finisher window frame top RL door ALU SATINIERT 1 08/2013 51358049203 ENDED
04 Finisher window frame top RL door ALU SATINIERT 1 02/2014 51354817297 ENDED
04 Finisher window frame top RL door ALU SATINIERT 1 51357392181
04 Finisher window frame top RR door ALU SATINIERT 1 08/2013 51358049204 ENDED
04 Finisher window frame top RR door ALU SATINIERT 1 02/2014 51354817298 ENDED
04 Finisher window frame top RR door ALU SATINIERT 1 51357392182
For vehicles with
High gloss shadow line

S760A=Yes
04 Finisher window frame top RL door GLANZSCHWARZ 1 51357209719
04 Finisher window frame top RR door GLANZSCHWARZ 1 51357209720
05 Seal, end panel, B-column, left 1 51357182305
05 Seal, end panel, B-column, right 1 51357182306
06 Seal, door joint, door rear lower 2 51357182301
07 Inner left window channel cover 1 51357182289
07 Inner right window channel cover 1 51357182290
08 Outer weatherstrip, rear left door 1 51357208567
08 Window well strip, outer, door, rear rgt 1 51357208568
For vehicles with
Indiv. Ext. Line, burnished aluminium

S3MBA=Yes
08 Outer weatherstrip, rear left door ALU SATINIERT 1 08/2013 51358049201 ENDED
08 Outer weatherstrip, rear left door ALU SATINIERT 1 02/2014 51354817299 ENDED
08 Outer weatherstrip, rear left door ALU SATINIERT 1 51357392183
08 Window well strip, outer, door, rear rgt ALU SATINIERT 1 08/2013 51358049202 ENDED
08 Window well strip, outer, door, rear rgt ALU SATINIERT 1 02/2014 51354817300 ENDED
08 Window well strip, outer, door, rear rgt ALU SATINIERT 1 51357392184
For vehicles with
High gloss shadow line

S760A=Yes
08 Outer weatherstrip, rear left door GLANZSCHWARZ 1 51357209713
08 Window well strip, outer, door, rear rgt GLANZSCHWARZ 1 51357209714
09 Stopper left 1 51357266797
09 Stopper right 1 51357266798
10 Cover, column B, door, rear left 1 51357182293
10 Cover, column B, door, rear right 1 51357182294
For vehicles with
Indiv. Ext. Line, burnished aluminium
or
High gloss shadow line

S3MBA=Yes

S760A=Yes
10 Cover, column B, door, rear left GLANZSCHWARZ 1 51357209715
10 Cover, column B, door, rear right GLANZSCHWARZ 1 51357209716
11 Clip, cover for column B 8 51337177961
12 Clamp 4 07147229342
13 Oval head screw 8 07149143562
14 Seal, rear panel, edge, left 1 51357230843
14 Seal, rear panel, edge, right 1 51357230844
15 Window guide web cover left 1 51357199777
15 Window guide web cover right 1 51357199778
For vehicles with
Indiv. Ext. Line, burnished aluminium
or
High gloss shadow line

S3MBA=Yes

S760A=Yes
15 Window guide web cover left GLANZSCHWARZ 1 51357209717
15 Window guide web cover right GLANZSCHWARZ 1 51357209718
16 Cover, window guide rail, left 1 51357199311
16 Cover, window guide rail, right 1 51357199312
17 Trim cover, window frame, C-pillar, left 1 51357199785
17 Trim cover, window frame C-pillar, right 1 51357199786
For vehicles with
Indiv. Ext. Line, burnished aluminium
or
High gloss shadow line

S3MBA=Yes

S760A=Yes
17 Trim cover, window frame, C-pillar, left GLANZSCHWARZ 1 51357209721
17 Trim cover, window frame C-pillar, right GLANZSCHWARZ 1 51357209722
18 Clip, trim cover, C-pillar 6 07147256487
Notes
  • ENDED = the part has been discontinued (no longer available).
