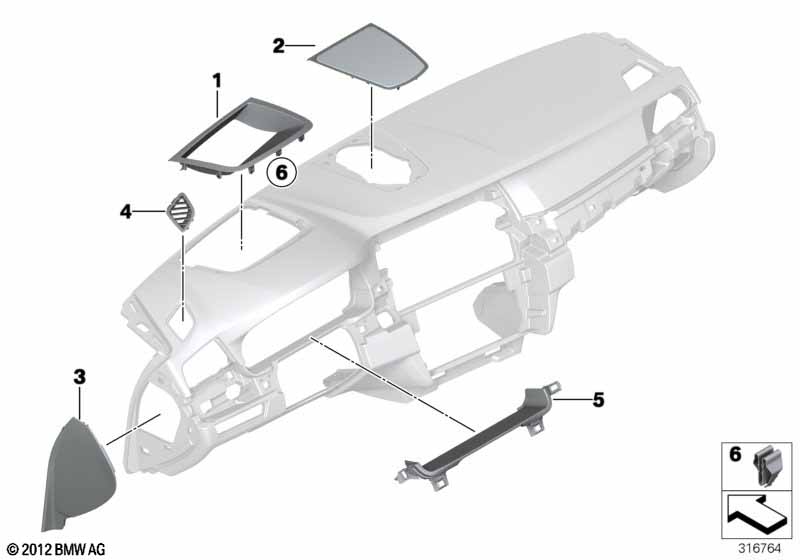

5' F11 LCI M550dX Mounting parts, I-panel, top
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Head-up display |
S610A=Yes |
||||||||
| 01 | Trim piece for head-up display | SCHWARZ | 1 | 51459209798 | |||||
| For vehicles with Head-up display and elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
S610A=Yes EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 01 | Trim piece for head-up display | DOLOMITI | 1 | 51459209797 | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Bang&Olufsen High End Surround Sound |
S676A=No S677A=No S6F2A=No |
||||||||
| 02 | Cover, center speaker | SCHWARZ | 1 | 51459209779 | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S676A=Yes S688A=Yes S6F2A=No |
||||||||
| 02 | Cover, center speaker | SCHWARZ | 1 | 51459209781 | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S676A=Yes S688A=No S6F2A=No |
||||||||
| 02 | Cover, center speaker | SCHWARZ | 1 | 51459209781 | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound |
S676A=No S688A=Yes S6F2A=No |
||||||||
| 02 | Cover, center speaker | SCHWARZ | 1 | 51459209781 | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound and elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
S676A=Yes S688A=Yes S6F2A=No EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 02 | Cover, center speaker | DOLOMITI | 1 | 51459209780 | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound and elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
S676A=Yes S688A=No S6F2A=No EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 02 | Cover, center speaker | DOLOMITI | 1 | 51459209780 | |||||
| For vehicles with HiFi speaker system and Harman/Kardon Surround Sound system and Bang&Olufsen High End Surround Sound and elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
S676A=No S688A=Yes S6F2A=No EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 02 | Cover, center speaker | DOLOMITI | 1 | 51459209780 | |||||
| For vehicles with HiFi speaker system and HiFi System Professional DSP and Bang&Olufsen High End Surround Sound and elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
S676A=No S677A=No S6F2A=No EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 02 | Cover, center speaker | DOLOMITI | 1 | 51459209778 | |||||
| 03 | Side cover, left | SCHWARZ | 1 | 51459209788 | |||||
| 03 | Side cover, right | SCHWARZ | 1 | 51459209790 | |||||
| 03 | Side cover for "Airbag off" right | SCHWARZ | 1 | 51459209794 | |||||
| For vehicles with elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 03 | Side cover, left | DOLOMITI | 1 | 51459209787 | |||||
| 03 | Side cover, right | DOLOMITI | 1 | 51459209789 | |||||
| 03 | Side cover for "Airbag off" right | DOLOMITI | 1 | 51459209792 | |||||
| 04 | Covering defroster nozzle left | SCHWARZ | 1 | 51459207397 | +core | ||||
| 04 | Covering defroster nozzle right | SCHWARZ | 1 | 51459207398 | +core | ||||
| For vehicles with elfenbein-weiss/oyster Exclusive seam or anthracite or oyster Exclusive seam or Black Exclusive seam |
EO=Yes IZ=Yes OT=Yes SJ=Yes |
||||||||
| 04 | Covering defroster nozzle left | DOLOMITI | 1 | 51459207399 | +core | ||||
| 04 | Covering defroster nozzle right | DOLOMITI | 1 | 51459207400 | +core | ||||
| 05 | Cover for instrument panel | 1 | 51459194376 | ||||||
| For vehicles with Head-up display |
S610A=Yes |
||||||||
| 06 | Clamp | 5 | 07/2011 | 51167151389 | $1.10 | ENDED | |||
| 06 | Clamp | 5 | 07147321144 | ||||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
