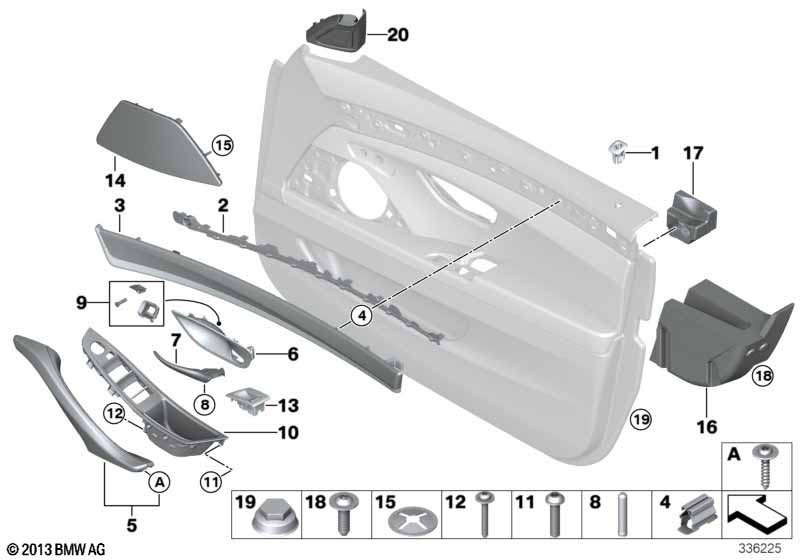

5' F11 LCI M550dX Surface-mounted parts, door panel, front

Surface-mounted parts, door panel, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
elfenbein-weiss/oyster Exclusive seam
or
anthracite
or
oyster Exclusive seam
or
Black Exclusive seam

EO=Yes

IZ=Yes

OT=Yes

SJ=Yes
01 Cover, locking button DOLOMITI 2 51417271381
For vehicles with
anthracite
or
Veneto-beige
or
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
zimt-braun
or
Veneto beige exclusive seam
or
Black Exclusive seam
or
Mocha
or
oyster Exclusive seam
or
oyster Exclusive seam
or
Black

AT=Yes

DF=Yes

ET=Yes

EU=Yes

EZ=Yes

LY=Yes

LZ=Yes

MW=Yes

OU=Yes

OX=Yes

SW=Yes
01 Cover, locking button SCHWARZ 2 51429171769
For vehicles with
Fine-wood trim ash grain

S4BNA=Yes
02 Holder, fiber-optic cable, left 1 51417225881
02 Holder, fiber-optic cable, right 1 51417225882
For vehicles with
Interieurleisten Pearl dunkel

S4DZA=Yes
03 Trim cover, door, front left PEARL DUNKEL 1 51417342301
03 Trim cover, door, front right PEARL DUNKEL 1 51417342302
For vehicles with
Fine woodgrain ash pattern brown +inlay

S4CTA=Yes
03 Trim cover, door, ash wood, front left BRAUN 1 51417349515
03 Trim cover, door, ash wood, front right BRAUN 1 51417349516
For vehicles with
Interior strips, alu, satin-polished

S4B9A=Yes
03 Cover door alu polished, front left 1 51417225545
03 Cover door alu polished, front right 1 51417225546
For vehicles with
Interior strips, aluminum hexagon

S4MRA=Yes
03 Trim cover, door, alu, front right HEXAGON 1 51418050164
03 Trim cover, door, alu, front left HEXAGON 1 51418050163
For vehicles with
Fine-wood trim ash grain

S4BNA=Yes
03 Trim cover, door, ash wood, front left BRAUN 1 51417225551
03 Trim cover, door, ash wood, front right BRAUN 1 51417225552
For vehicles with
Fine woodgrain vers., Fineline anthrac.

S4CEA=Yes
03 Trim for door, wood, Fineline, front LE ANTHRAZIT 1 51417225547
03 Trim for door, wood, Fineline, front RI ANTHRAZIT 1 51417225548
For vehicles with
Interior strip, aluminum, weave pattern

S4EFA=Yes
03 Trim cover, door, alu, front left TRACE 1 51417342299
03 Trim cover, door, alu, front right TRACE 1 51417342300
For vehicles with
Fine woodgrain version 'Fineline' light

S4CKA=Yes
03 Trim, door, wood, Fineline, light, fr.LE 1 51417342293
03 Trim, door, wood, Fineline, light, fr.RI 1 51417342294
For vehicles with
Interior trim finishers black high-gloss
or
Interior trim finishers black high-gloss

S4ATA=Yes

S4EHA=Yes
03 Trim cover, door, front left SCHWARZ 1 51419171781
03 Trim cover, door, front right SCHWARZ 1 51419171782
04 Clamp X 07147213397 $1.17
For vehicles with
Leather Nappa/mocca/Exclusive seam
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

LZMW=Yes
05 Closing handle, right MOKKA 1 51417359276
For vehicles with
Fabric "diagonal/veneto-beige"
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

AWDF=Yes
05 Closing handle, right VENETOBEIGE 1 51417225836
For vehicles with
Imitation leather "Leatherette/black"
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

K8SW=Yes
05 Closing handle, right SCHWARZ 1 51417225848
For vehicles with
Imit. leather "Leatherette/veneto-beige"
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

K8DF=Yes
05 Closing handle, right VENETOBEIGE 1 51417225850
For vehicles with
Leather "Dakota/zimt-braun"
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

LCEZ=Yes
05 Closing handle, right ZIMTBRAUN 1 51417225860
For vehicles with
Leather "Dakota/veneto-beige"
or
Leather Dakota/veneto-beige/excl. seam
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

LCDF=Yes

LCLY=Yes
05 Closing handle, right VENETOBEIGE 1 51417225854
For vehicles with
Fabric "Diagonal/anthracite"
or
Fabric Diagonal/anthracite
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

AWAT=Yes

AWIZ=Yes
05 Closing handle, right SCHWARZ 1 51417225834
For vehicles with
Leather Nappa/black/Exclusive seam
or
Leather Nappa/black/Exclusive seam
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

LZLZ=Yes

LZSJ=Yes
05 Closing handle, right SCHWARZ 1 51417225862
For vehicles with
Lthr Nappa/elfenbein-weiss/Exclusiv seam
or
Lthr Nappa/elfenbein-weiss/Exclusiv seam
or
Lthr Nappa/elfenbein-weiss/Exclusiv seam
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

LZEO=Yes

LZET=Yes

LZEU=Yes
05 Closing handle, right OYSTER 1 51417225864
For vehicles with
Leather Dakota/oyster/Exclusive seam
or
Leather Dakota/oyster/Exclusive seam
or
Leather Dakota/oyster/Exclusive seam
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

LCOT=Yes

LCOU=Yes

LCOX=Yes
05 Closing handle, right OYSTER 1 51417225858
For vehicles with
Fabric 'Gray Shadow/anthracite'
or
Leather Dakota/black/excl. seam
or
Leather Dakota/black/excl. seam
or
Leather "Dakota"/schwarz
Driver's side handle is not available
individually, but only in conjunction
with driver's side door trim panel.

AZAT=Yes

LCLZ=Yes

LCSJ=Yes

LCSW=Yes
05 Closing handle, right SCHWARZ 1 51417225852
For vehicles with
Veneto-beige
or
Veneto beige exclusive seam

DF=Yes

LY=Yes
06 Cover, door opener, left VENETOBEIGE 1 51417226365
06 Cover door opener right VENETOBEIGE 1 51417226366
For vehicles with
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
06 Cover, door opener, left OYSTER 1 51417226369
06 Cover door opener right OYSTER 1 51417226370
For vehicles with
anthracite
or
zimt-braun
or
anthracite
or
Black Exclusive seam
or
Mocha
or
Black Exclusive seam
or
Black

AT=Yes

EZ=Yes

IZ=Yes

LZ=Yes

MW=Yes

SJ=Yes

SW=Yes
06 Cover, door opener, left SCHWARZ 1 51417226363
06 Cover door opener right SCHWARZ 1 51417226364
07 Door handle, inside left 1 51217225689
07 Door handle inner right 1 51217225690
08 Pin 2 51417274746
09 Repair kit, door handle recess, left 1 51417286923
09 Repair kit, door handle recess, right 1 51417286924
For vehicles with
Mocha

MW=Yes
10 Left handle MOKKA 1 51417359283
For vehicles with
zimt-braun

EZ=Yes
10 Left handle ZIMTBRAUN 1 51417261929
For vehicles with
Interior/outside mirror with auto dip
and
zimt-braun

S430A=Yes

EZ=Yes
10 Left handle ZIMTBRAUN 1 51417261933
For vehicles with
Veneto-beige
or
Veneto beige exclusive seam

DF=Yes

LY=Yes
10 Left handle VENETOBEIGE 1 51417225867
For vehicles with
Interior/outside mirror with auto dip
and
Mocha

S430A=Yes

MW=Yes
10 Left handle MOKKA 1 51417359291
For vehicles with
Interior/outside mirror with auto dip
and
  Veneto-beige
  or
  Veneto beige exclusive seam

S430A=Yes

DF=Yes

LY=Yes
10 Left handle VENETOBEIGE 1 51417225875
For vehicles with
anthracite
or
anthracite
or
Black Exclusive seam
or
Black Exclusive seam
or
Black

AT=Yes

IZ=Yes

LZ=Yes

SJ=Yes

SW=Yes
10 Left handle SCHWARZ 1 51417225865
For vehicles with
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
10 Left handle OYSTER 1 51417225871
For vehicles with
Interior/outside mirror with auto dip
and
  anthracite
  or
  anthracite
  or
  Black Exclusive seam
  or
  Black Exclusive seam
  or
  Black

S430A=Yes

AT=Yes

IZ=Yes

LZ=Yes

SJ=Yes

SW=Yes
10 Left handle SCHWARZ 1 51417225873
For vehicles with
Interior/outside mirror with auto dip
and
  elfenbein-weiss/oyster Exclusive seam
  or
  elfenbein-weiss/oyster Exclusive seam
  or
  elfenbein-weiss/oyster Exclusive seam
  or
  oyster Exclusive seam
  or
  oyster Exclusive seam
  or
  oyster Exclusive seam

S430A=Yes

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
10 Left handle OYSTER 1 51417225879
11 Fillister head screw 4X18 2 07149111334 $1.09
12 Screw with washer 4X30 2 07147073388
For vehicles with
Mocha

MW=Yes
13 Trim for power window, right MOKKA 1 51417359314
For vehicles with
zimt-braun

EZ=Yes
13 Trim for power window, right ZIMTBRAUN 1 51417261954
For vehicles with
Veneto-beige
or
Veneto beige exclusive seam

DF=Yes

LY=Yes
13 Trim for power window, right VENETOBEIGE 1 51417225892
For vehicles with
anthracite
or
anthracite
or
Black Exclusive seam
or
Black Exclusive seam
or
Black

AT=Yes

IZ=Yes

LZ=Yes

SJ=Yes

SW=Yes
13 Trim for power window, right SCHWARZ 1 51417225890
For vehicles with
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
13 Trim for power window, right OYSTER 1 51417225896
For vehicles with
Mocha

MW=Yes
14 Cover f left loudspeaker MOKKA 1 51417359297
14 Cover f right loudspeaker MOKKA 1 51417359300
For vehicles with
zimt-braun

EZ=Yes
14 Cover f left loudspeaker ZIMTBRAUN 1 51417261931
14 Cover f right loudspeaker ZIMTBRAUN 1 51417261956
For vehicles with
Veneto-beige
or
Veneto beige exclusive seam

DF=Yes

LY=Yes
14 Cover f left loudspeaker VENETOBEIGE 1 51417225969
14 Cover f right loudspeaker VENETOBEIGE 1 51417225980
For vehicles with
Harman/Kardon Surround Sound system
and
zimt-braun

S688A=Yes

EZ=Yes
14 Cover f left loudspeaker ZIMTBRAUN 1 51417261961
14 Cover f right loudspeaker ZIMTBRAUN 1 51417261964
For vehicles with
Bang&Olufsen High End Surround Sound
and
zimt-braun

S6F2A=Yes

EZ=Yes
14 Cover f left loudspeaker ZIMTBRAUN 1 51417318817
14 Cover f right loudspeaker ZIMTBRAUN 1 51417318818
For vehicles with
Bang&Olufsen High End Surround Sound
and
Mocha

S6F2A=Yes

MW=Yes
14 Cover f left loudspeaker MOKKA 1 51417359309
14 Cover f right loudspeaker MOKKA 1 51417359312
For vehicles with
Harman/Kardon Surround Sound system
and
Mocha

S688A=Yes

MW=Yes
14 Cover f left loudspeaker MOKKA 1 51417359301
14 Cover f right loudspeaker MOKKA 1 51417359304
For vehicles with
Bang&Olufsen High End Surround Sound
and
  Veneto-beige
  or
  Veneto beige exclusive seam

S6F2A=Yes

DF=Yes

LY=Yes
14 Cover f left loudspeaker VENETOBEIGE 1 51417318811
14 Cover f right loudspeaker VENETOBEIGE 1 51417318812
For vehicles with
Harman/Kardon Surround Sound system
and
  Veneto-beige
  or
  Veneto beige exclusive seam

S688A=Yes

DF=Yes

LY=Yes
14 Cover f left loudspeaker VENETOBEIGE 1 51417226337
14 Cover f right loudspeaker VENETOBEIGE 1 51417226346
For vehicles with
anthracite
or
anthracite
or
Black Exclusive seam
or
Black Exclusive seam
or
Black

AT=Yes

IZ=Yes

LZ=Yes

SJ=Yes

SW=Yes
14 Cover f left loudspeaker SCHWARZ 1 51417225967
14 Cover f right loudspeaker SCHWARZ 1 51417225978
For vehicles with
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
elfenbein-weiss/oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam
or
oyster Exclusive seam

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
14 Cover f left loudspeaker OYSTER 1 51417225973
14 Cover f right loudspeaker OYSTER 1 51417225984
For vehicles with
Harman/Kardon Surround Sound system
and
  anthracite
  or
  anthracite
  or
  Black Exclusive seam
  or
  Black Exclusive seam
  or
  Black
  or
  Indi. leather expanded/'seiden-grau'

S688A=Yes

AT=Yes

IZ=Yes

LZ=Yes

SJ=Yes

SW=Yes

ZAP7=Yes
14 Cover f left loudspeaker SCHWARZ 1 51417226335
14 Cover f right loudspeaker SCHWARZ 1 51417226344
For vehicles with
Bang&Olufsen High End Surround Sound
and
  anthracite
  or
  anthracite
  or
  Black Exclusive seam
  or
  Black Exclusive seam
  or
  Black
  or
  Indi. leather expanded/'seiden-grau'

S6F2A=Yes

AT=Yes

IZ=Yes

LZ=Yes

SJ=Yes

SW=Yes

ZAP7=Yes
14 Cover f left loudspeaker SCHWARZ 1 51417318809
14 Cover f right loudspeaker SCHWARZ 1 51417318810
For vehicles with
Bang&Olufsen High End Surround Sound
and
  elfenbein-weiss/oyster Exclusive seam
  or
  elfenbein-weiss/oyster Exclusive seam
  or
  elfenbein-weiss/oyster Exclusive seam
  or
  oyster Exclusive seam
  or
  oyster Exclusive seam
  or
  oyster Exclusive seam

S6F2A=Yes

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
14 Cover f left loudspeaker OYSTER 1 51417318815
14 Cover f right loudspeaker OYSTER 1 51417318816
For vehicles with
Harman/Kardon Surround Sound system
and
  elfenbein-weiss/oyster Exclusive seam
  or
  elfenbein-weiss/oyster Exclusive seam
  or
  elfenbein-weiss/oyster Exclusive seam
  or
  oyster Exclusive seam
  or
  oyster Exclusive seam
  or
  oyster Exclusive seam

S688A=Yes

EO=Yes

ET=Yes

EU=Yes

OT=Yes

OU=Yes

OX=Yes
14 Cover f left loudspeaker OYSTER 1 51417226341
14 Cover f right loudspeaker OYSTER 1 51417226350
15 Spring nut X 07/2008 51418229585 $0.23
15 Spring nut X 16117196643
For vehicles with
Soft-Close-Automatic doors

S323A=No
16 Crashpad, door, front left 1 51717196755
16 Crashpad, door, front right 1 51717196756
For vehicles with
Soft-Close-Automatic doors

S323A=Yes
16 Crashpad, door, front left SCA 1 51717196757
16 Crashpad, door, front right SCA 1 51717196758
17 Crashpad, door, front left 1 51717263093
17 Crashpad, door, front right 1 51717263094
18 Fillister head screw ST5X17-ZNS3 2 07147127714 $0.25
19 Covering cap 2 07149216250
For vehicles with
HiFi speaker system
and
Harman/Kardon Surround Sound system
and
Bang&Olufsen High End Surround Sound

S676A=No

S688A=Yes

S6F2A=No
20 Cover, mirror baseplate, left HARMAN / KARDON 1 51337380659
20 Cover, mirror baseplate, right HARMAN / KARDON 1 51337380660
For vehicles with
HiFi speaker system
and
Harman/Kardon Surround Sound system
and
Bang&Olufsen High End Surround Sound

S676A=No

S688A=No

S6F2A=No
20 Cover, mirror baseplate, left 1 51337182013
20 Cover, mirror baseplate, right 1 51337182014
For vehicles with
HiFi speaker system
and
Harman/Kardon Surround Sound system
and
Bang&Olufsen High End Surround Sound

S676A=Yes

S688A=No

S6F2A=No
20 Cover, mirror baseplate, left 1 51337275779
20 Cover, mirror baseplate, right 1 51337275780
For vehicles with
HiFi speaker system
and
Harman/Kardon Surround Sound system
and
Bang&Olufsen High End Surround Sound

S676A=No

S688A=No

S6F2A=Yes
20 Cover f left loudspeaker tweeter 1 51417318797
20 Cover f right loudspeaker tweeter 1 51417318798

Copyright © RealOEM.com
