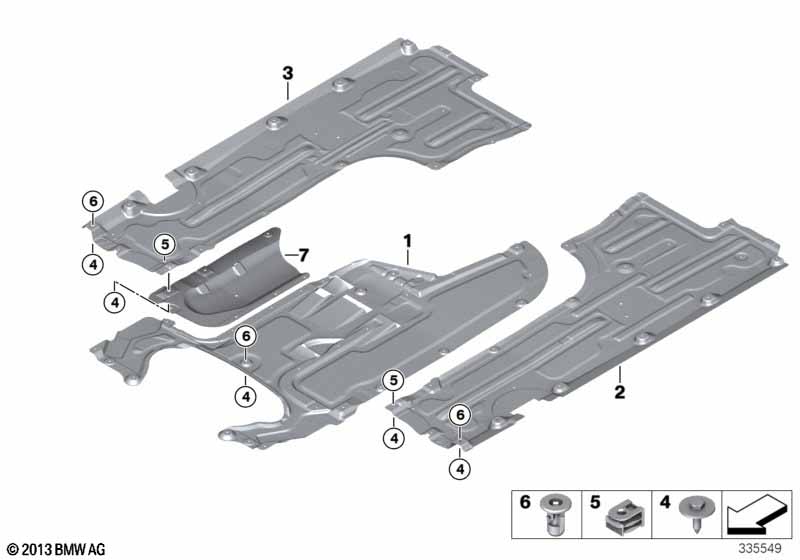

5' F11 LCI M550dX Underbody cover, front

Underbody cover, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Underfloor coating center 1 51757186714 $94.67
02 Underbody paneling, left 1 51757207267
03 Underside paneling, right 1 51757207268
04 Hex bolt TS5X20 SW8 D=22 X 07149213164 $0.38
05 C-clip for plastic nut TS5 X 07147311312
06 Expanding nut L=18.4, DMAX=18 X 07147201307 $0.25
For vehicles with
Trailer coupling

S3ACA=No
07 Cover for exhaust system 1 51757265262
