5' F11 LCI M550dX Control unit for rear function module

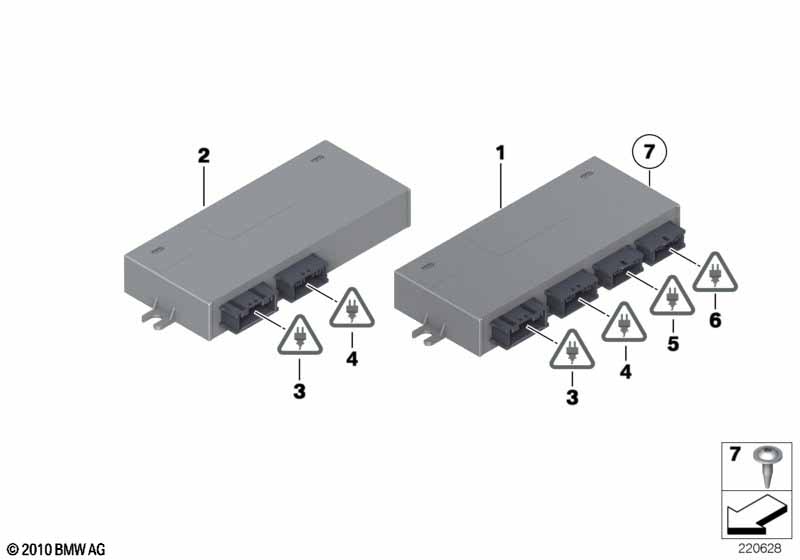

Control unit for rear function module
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear function module 1 04/2013 61357394651
For vehicles with
automatic trunk lid mechanism

S316A=Yes
01 Rear function module 1 04/2013 61357394651
For vehicles with
automatic trunk lid mechanism

S316A=No
02 Rear function module 1 04/2013 61357365901
03 Covering cap 13 POL. 1 61138369668 $1.12
only in conjunction with
-- Socket terminal MQS 0.2-0.35 MM²/SN X 61131383776 $0.28
-- Terminal socket MQS ELA 0,5-0,75 MM² AG X 61136931880
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² X 61138364832 $0.35
-- Socket contact ELO-Power 5,2x0,63 1,5-2,5 MM² SN X 61138364842 $0.50
-- Socket contact ELO-Power 5,2x0,63 2,4- 4,0 MM? X 61138364844 $0.50
-- Socket housing 13 POL. 1 61138369672 $0.92
-- Socket contact ELO-Power 2,8x0,63 0,35-0,5 MM² SN X 61138377162 $0.35
04 Socket housing, uncloded 10 POL. 1 61136931912 $4.12
only in conjunction with
-- Socket terminal MQS 0,5-0,75 MM²/AU X 61131393726 $0.68
-- Socket contact ELO-Power 2,8x0,63 2,5-4,0 MM X 61136913612 $0.50
05 Socket housing 8 POL. 1 61136901678 $2.27
only in conjunction with
-- Terminal socket MQS ELA 0.2-0.5 MM² SN X 61131393704 $0.23
-- Socket contact ELO-Power 2,8x0,63 2,5-4,0 MM X 61136913612 $0.50
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² X 61138364836 $0.35
06 Socket housing 8 POL. 1 61136901678 $2.27
only in conjunction with
-- Terminal socket MQS ELA 0.2-0.5 MM² SN X 61131393704 $0.23
-- Socket contact ELO-Power 2,8x0,63 2,5-4,0 MM X 61136913612 $0.50
-- Socket contact ELO-Power 2,8x0,63 0,5-1,0 MM² X 61138364836 $0.35
