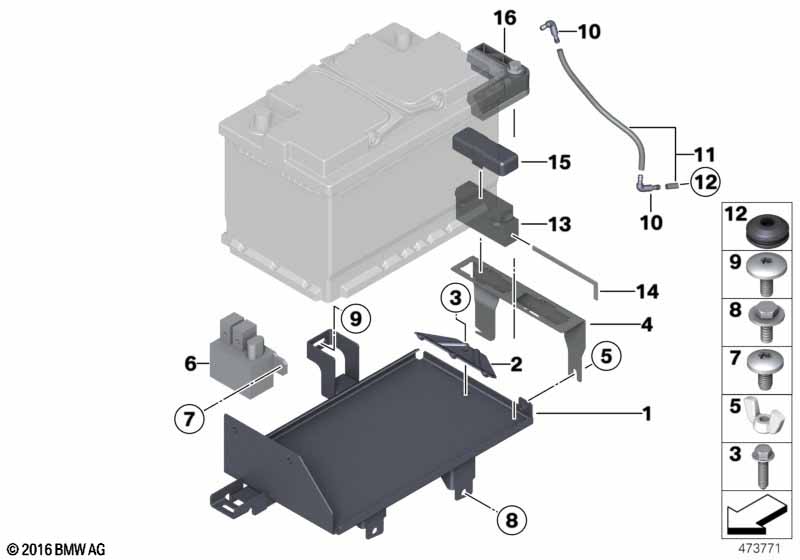

5' F11 LCI M550dX battery holder and mounting parts

battery holder and mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Additional energy supply

S146A=Yes
01 Additional battery holder 1 61217267405
02 Battery hold down 1 61217631587
03 Hex screw with collar M6/ 26,5MM 2 07147211160 $1.36
04 Holder 1 61137267429
05 Wing nut M6 1 71106781147 $0.38
06 Relay 150A 1 61367661503 $73.85 +core
07 Torx-bolt with washer M6X12 2 51219130334 $0.39
08 Hex bolt with washer M6X16-U2-ZNS3 2 07119902913
09 Torx-bolt with washer M6X12 2 51219130334 $0.39
10 Connection elbow 2 61211377835 $0.52
11 Hose running meter 1 61211377745 $1.97
12 Grommet 12MM 1 61217591102
13 Fuse housing 2 61138373687
14 Slider 10X 2 61131387129 $0.68
15 Cover 2 61132305058 $3.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
