5' F11 LCI M550dX Single parts for rear window wiper

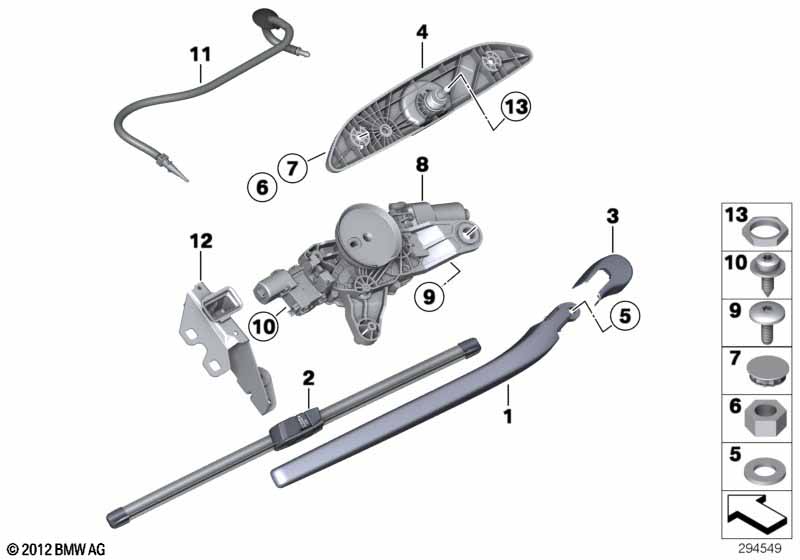

Single parts for rear window wiper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear window wiper arm 1 61627207042
02 Wiper blade 1 61627355823
03 Wiper arm cover 1 61627066175 $2.62
04 Wipershaft pivot 1 12/2012 61627355820
only in conjunction with
-- Rear window button 1 12/2012 61319288321
04 Wipershaft pivot 1 12/2012 61627355820
05 Wave washer 1 07119904115 $0.09
06 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
07 Covering cap 1 61627254950
08 Rear window wiper motor 1 67637311415
09 Torx bolt M6X22 1 07147075867 $0.65
10 Torx-bolt with washer ISA M6X9 3 07147154230
11 Rear washer nozzle 1 61687236878
12 Rear window lock 1 51247250299
13 Hex nut 1 07149188008
