5' F11 LCI M550dX Radio and climate control panel

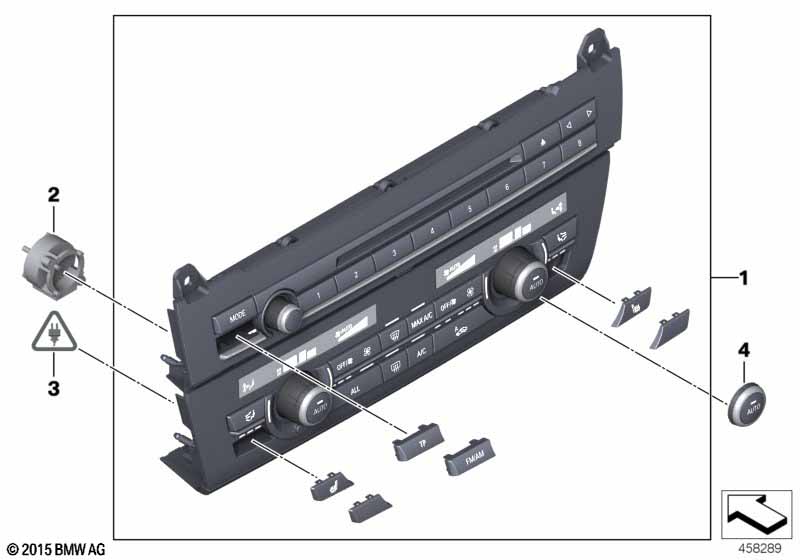

Radio and climate control panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Observe Repair Manual REP-61 31 823!
For vehicles up to 07/2012:
Use the button cover
repair kit if buttons display
surface damage.
For vehicles with
Climate-controlled seats, front
and
Ceramic appliques for controls

S453A=No

S4U1A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328427
For vehicles with
Climate-controlled seats, front
and
Ceramic appliques for controls
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=No

S4U1A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328427
For vehicles with
Climate-controlled seats, front
and
Ceramic appliques for controls

S453A=Yes

S4U1A=No
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328426
For vehicles with
Climate-controlled seats, front
and
Ceramic appliques for controls
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=Yes

S4U1A=No
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328426
For vehicles with
Climate-controlled seats, front
and
Ceramic appliques for controls

S453A=Yes

S4U1A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328429
For vehicles with
Climate-controlled seats, front
and
Ceramic appliques for controls
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=Yes

S4U1A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328429
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning

S453A=No

S4NBA=Yes

S4U1A=No

S534A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 07/2013 61319290742 ENDED
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328425
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning

S453A=No

S4NBA=Yes

S4U1A=No

S534A=No
01 Rep. kit for radio/climate cont. panel 1 07/2012 07/2013 61319290742 ENDED
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328425
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning

S453A=No

S4NBA=No

S4U1A=No

S534A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 07/2013 61319290742 ENDED
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328425
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=No

S4NBA=Yes

S4U1A=No

S534A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319290742 ENDED
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328425
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=No

S4NBA=Yes

S4U1A=No

S534A=No
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319290742 ENDED
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328425
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=No

S4NBA=No

S4U1A=No

S534A=Yes
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319290742 ENDED
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328425
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning

S453A=No

S4NBA=No

S4U1A=No

S534A=No
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328424
For vehicles with
Climate-controlled seats, front
and
Autom. climate control with 4-zone ctrl
and
Ceramic appliques for controls
and
Automatic air conditioning
The symbols employed to represent
seat adjustment and climate-control
operating elements may vary from
those originally installed in the
vehicle.

S453A=No

S4NBA=No

S4U1A=No

S534A=No
01 Rep. kit for radio/climate cont. panel 1 07/2012 61319328424
Suitable only for first-generation radio
and a/c controls as installed in
production vehicles manufactured
up to 07/2012.
02 Interior temperature sensor fan 1 07/2012 64116910342 $52.73
For vehicles with
Ceramic appliques for controls

S4U1A=No
04 Repair kit for revolving stand 1 61319393931
Notes
  • ENDED = the part has been discontinued (no longer available).
