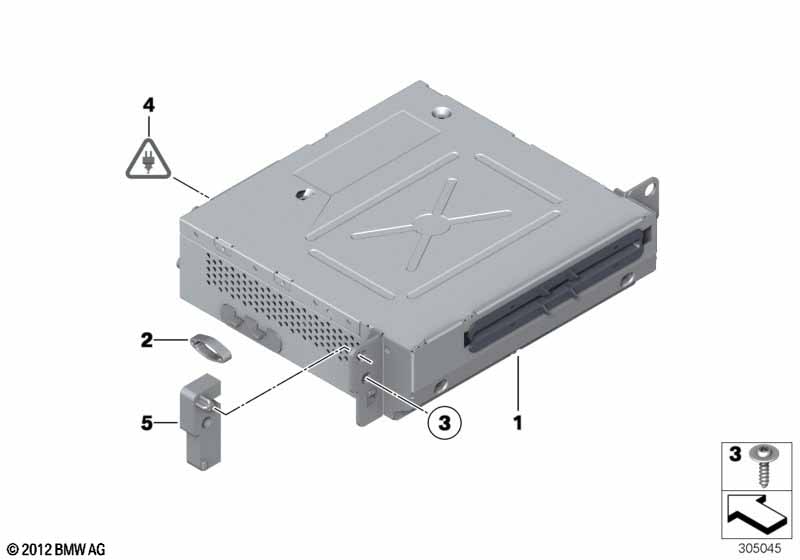

5' F11 LCI M550dX CHAMP 2 / CIC-Mid

CHAMP 2 / CIC-Mid
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice!
The system automatically requests
the repair enable codes during the
programming routine. As an alternative,
it is possible to request the enable
codes
directly by selecting 'Sweeping
Technology'
in the 'FSC repair information request'
menu
at the ASAP Portal.
A t t e n t i o n ! The defective used
part
must be forwarded through the exchange
part return loop. It is essential to
observe
PARTS_051_09_14 product information
bulletin!
Attention!
In the event that the head unit is
stolen, it is necessary to consult with
the
insurance company to determine whether
an exchange part
may be installed and whether the
associated flat rate deposit may be
applied
.
If the insurance demands that a
new part must be used, then the
corresponding part number must be taken
from the EPC
.
For vehicles with
Navigation system Professional


































S609A=No
For vehicles with
Navigation system Professional
and
Connection Bluetooth + USB devices incl.

S609A=No

S6NLA=Yes
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292329 ENDED
01 Exchange CHAMP 2 1 07/2012 65129317884
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner

S601A=No

S606A=No

S609A=No

S654A=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292328 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317879
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner

S601A=No

S606A=Yes

S609A=No

S654A=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292319 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317872
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Control for Infotainment

S601A=No

S606A=No

S609A=No

S654A=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317879
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S609A=No

S620A=Yes

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S609A=No

S620A=Yes

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S609A=No

S620A=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S609A=No

S620A=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S609A=No

S620A=Yes

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S609A=No

S620A=Yes

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S609A=No

S620A=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S609A=No

S620A=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S609A=No

S620A=Yes

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S609A=No

S620A=Yes

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S609A=No

S620A=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S609A=No

S620A=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S609A=No

S620A=Yes

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S609A=No

S620A=Yes

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S609A=No

S620A=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 65129273862
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner

S601A=No

S606A=No

S609A=No

S620A=Yes

S654A=Yes
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228311
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner

S601A=No

S606A=No

S609A=No

S620A=Yes

S654A=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228311
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner

S601A=No

S606A=No

S609A=No

S620A=No

S654A=Yes
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228311
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S609A=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S609A=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S609A=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S609A=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S609A=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S609A=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S609A=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292326 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317877
For vehicles with
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Control for Infotainment

S601A=No

S606A=Yes

S609A=No

S654A=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317872
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Voice control
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S609A=No

S620A=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 65129273863
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S609A=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 US 1 07/2012 03/2013 65129292327 ENDED
01 Exchange CHAMP 2 US 1 07/2012 07/2013 65129317878
For vehicles with
National version japan
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner

L807A=No

S601A=No

S606A=No

S609A=No

S620A=Yes

S654A=No
01 Exchange CHAMP 2 1 07/2012 65129273858
For vehicles with
National version Korea
and
TV function
and
Navigation system Business
and
DAB tuner
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S601A=No

S606A=Yes

S654A=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exchange CHAMP 2 1 07/2012 65129273860
01 Exchange CHAMP 2 1 09/2010 65129230350 ENDED
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228311
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S609A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317878
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S609A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S609A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S609A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S609A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S609A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S609A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S609A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 US 1 07/2013 65129317877
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=Yes
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=No
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=Yes
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=No
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=Yes
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=No
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=Yes
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6UKA=No
01 CHAMP 2 1 03/2013 65129282025 ENDED
01 Exchange CHAMP 2 1 03/2013 65129273861
01 CHAMP 2 1 65129316173
01 Exch. Car Infotainment Computer Mid MIC/ VID 1 07/2013 65129221836
01 Car Infotainment Computer - Mid 1 07/2013 65129271933
01 Exchange CHAMP 2 1 07/2012 65129273861
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292333 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129342047 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364122
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317884
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292333 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129342047 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364122
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317884
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292333 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129342047 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364122
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317884
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
Voice control
and
DAB tuner
and
Hands-free with USB interface
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S620A=No

S654A=No

S6NHA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 65129273859
01 Exchange CHAMP 2 1 07/2012 65129273859
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292323 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 CHAMP 2 1 07/2012 03/2013 65129342046 ENDED
01 CHAMP 2 1 07/2012 03/2013 65129364121
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292332
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292334 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292322 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317875
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=Yes

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292322 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317875
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=Yes

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292322 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317875
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=No
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Link for Bluetooth and USB device
and
Connection Bluetooth + USB devices incl.
and
Night Vision with human recognition

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6NKA=No

S6NLA=No

S6UKA=Yes
01 Exchange CHAMP 2 1 07/2012 03/2013 65129292321 ENDED
01 Exchange CHAMP 2 1 07/2012 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317883
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=No

S606A=Yes

S620A=No

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exchange CHAMP 2 1 09/2010 11/2011 65129230345 ENDED
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228313
01 Exchange CHAMP 2 1 07/2012 65129273857
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317875
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317875
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317875
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317876
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317884
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317884
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317884
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=Yes

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=Yes

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=Yes

S6NSA=No

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=No

S609A=No

S654A=No

S6AEA=No

S6NSA=Yes

S6UKA=Yes

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317885
For vehicles with
Reversing camera
and
Surround View
and
TV function
and
Navigation system Business
and
Navigation system Professional
and
DAB tuner
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Night Vision with human recognition
and
Control for Infotainment

S3AGA=No

S5DLA=No

S601A=No

S606A=Yes

S609A=No

S654A=No

S6AEA=No

S6NSA=No

S6UKA=No

S6VBA=Yes
01 Exchange CHAMP 2 1 07/2013 65129317874
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=Yes

S606A=Yes

S620A=Yes

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=Yes

S606A=Yes

S620A=Yes

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=Yes

S606A=Yes

S620A=No

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=Yes

S606A=Yes

S620A=No

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=No

S606A=Yes

S620A=Yes

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=No

S606A=Yes

S620A=Yes

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=No

S606A=Yes

S620A=No

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=Yes

S5DLA=No

S606A=Yes

S620A=No

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=Yes

S606A=Yes

S620A=Yes

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=Yes

S606A=Yes

S620A=Yes

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=Yes

S606A=Yes

S620A=No

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=Yes

S606A=Yes

S620A=No

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=No

S606A=Yes

S620A=Yes

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=No

S606A=Yes

S620A=Yes

S654A=No

S6UKA=No

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
For vehicles with
National version Korea
and
Reversing camera
and
Surround View
and
Navigation system Business
and
Voice control
and
DAB tuner
and
Night Vision with human recognition
and
Language version, Chinese simpl.
and
Country control for HongKong 04142
and
Country-specific equipment Taiwan 04825

L802A=No

S3AGA=No

S5DLA=No

S606A=Yes

S620A=No

S654A=No

S6UKA=Yes

S866A=No

S8LHA=No

S8LTA=No
01 Exch. Car Infotainment Computer Mid 1 09/2010 65129228312
01 Exchange CHAMP 2 1 07/2012 65129273856
02 Alignment element 2 65129230353
03 Oval-head screw with washer DELTA PT4X20 4 07149185673
05 Spacer left 1 07/2012 65129250695
05 Spacer right 1 07/2012 65129250696
Notes
  • ENDED = the part has been discontinued (no longer available).

Copyright © RealOEM.com
