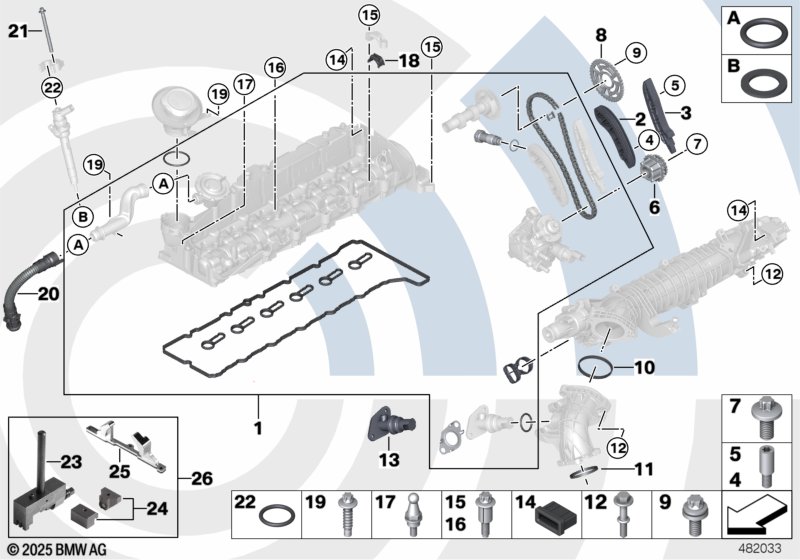

5' F11 LCI M550dX Repair kit, exposed timing chain, top

Repair kit, exposed timing chain, top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Observe repair instructions in REP-11
31 544!
Please observe PuMA measure 10134828!
Only in connection with pos.23, 24, 25
01 Repair kit, exposed timing chain, top VALUE LINE 1 11312452824
Engine oil change is required!
02 Chain tensioner 1 11317797898
03 Guide rail 1 11317797899
04 Bolt 1 13527797908
05 Bolt 2 11317797900
06 Sprocket 1 13527800025
07 ASA-Bolt M12X1 1 13527800395
08 Camshaft sprocket 1 11318509927
09 ASA-Bolt M7X17,3 3 11317797516
12 Hex bolt with washer M6X35-U1-8.8 7 07119904589 $0.47
15 ASA-Bolt 23 11127802605
16 ASA-Bolt 7 11127802606
17 Pin 1 13717802510 $2.73
18 Decoupling element 3 11128517120
18 Decoupling element 3 11128512188
19 Plastic bolt 5,0X19,5 3 09/2013 11127805414 $1.58
19 Torx-bolt for plastic material TS5X20 3 09/2013 51137010365 $0.66
21 Screw 6 13537805256
22 O-ring 6 13537794553 $4.38
Observe repair instructions in REP-11
31 544!
23 Basic body 1 83302354962
23 Basic body 1 83302354983
24 Female die 1 83302354976
24 Nietwerkzeug 1 83302354981
24 Spindle 1 83302354984
25 Holder N57 1 83302408015
26 Riveting tool set 1 83302354985
Observe repair instructions in REP-11
31 544!
26 Supplementary kit N57 1 83302409647
