5' F11 LCI M550dX Individual cover Klima-Leather, rear

Individual cover Klima-Leather, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.
- (A) Part number leather (perforated)
- (B) Part number leather (smooth)
- (C) Colour of thread
---------------------------
Version with seat heating (also suitable
for vehicles without seat heating)
---------------------------
For vehicles with
Climate-controlled seats, front
and
  special trim (without colour statement)
  or
  Indi. leather expanded/"platin/black"
  or
  Indi. leather, extended/kaschmir-beige
  or
  Indi. leather, extended/kaschmir-beige
  or
  Indi. leather expanded / muskat
  or
  Indi. leather, extended/amaro-braun
  or
  Indi. leather expanded/"champagner"
  or
  Indi. leather expanded/'seiden-grau'
  or
  Indi. leather expanded/'graphite'
  or
  Indi. leather expanded /"cohiba"





























S453A=Yes

Z1XX=Yes

ZAC8=Yes

ZAKO=Yes

ZAKS=Yes

ZAML=Yes

ZAP5=Yes

ZAP6=Yes

ZAP7=Yes

ZAP8=Yes

ZAWT=Yes

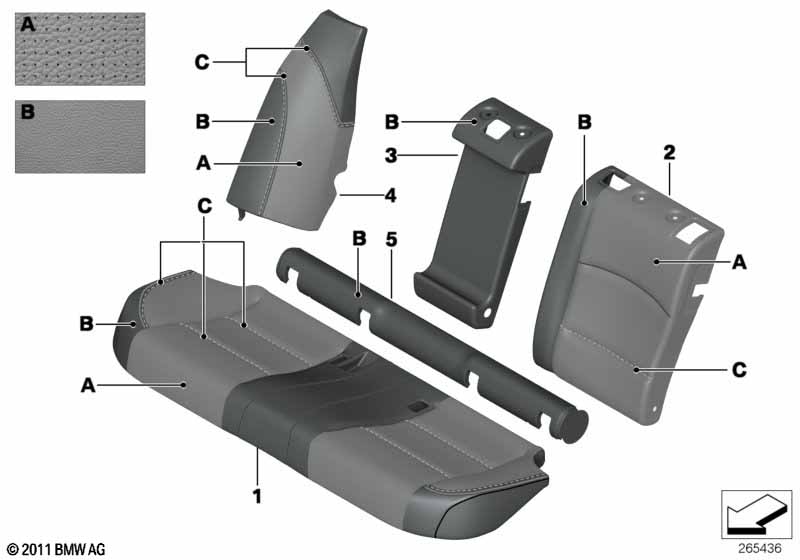

01 Upholstery, seat, perforated leather INDIVIDUAL 1 03/2011 52208034540 NoS
02 Cover, backrest, perforated leather, lft INDIVIDUAL 1 03/2011 52208034565 NoS
02 Cover, backrest, perforated leather, rgt INDIVIDUAL 1 03/2011 52208034566 NoS
03 Upholstery cover backrest, lthr, cent INDIVIDUAL 1 03/2011 52208034516 NoS
04 Side section, perforated leather, left INDIVIDUAL 1 03/2011 52208034977 NoS
04 Side section, perforated leather, right INDIVIDUAL 1 03/2011 52208034978 NoS
05 Leather cover for strip INDIVIDUAL 1 03/2011 52208034560 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
