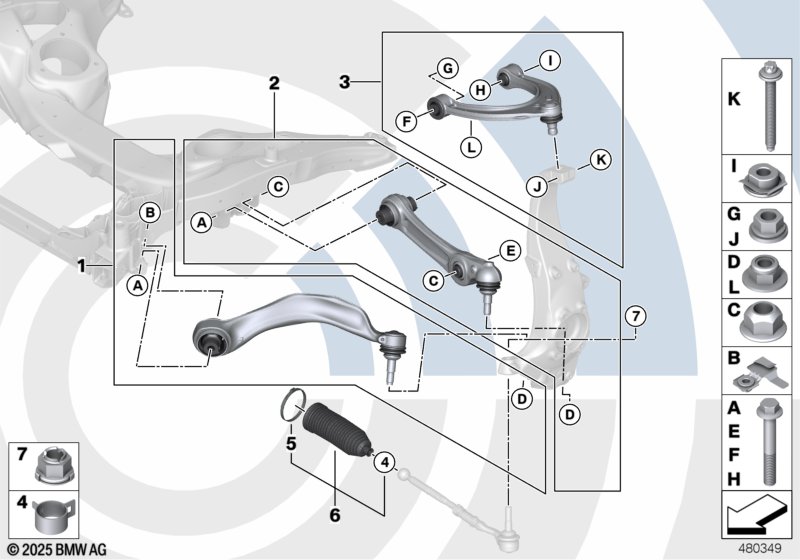

5' F11 LCI 520d Repair kit for radius rods and wishbones

Repair kit for radius rods and wishbones
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please observe Repair Manual.
01 Repair set for radius rod, left VALUE LINE 1 31122450815
01 Repair set for radius rod, right VALUE LINE 1 31122450818
02 Wishbone repair kit bottom left VALUE LINE 1 31122450813
02 Wishbone repair kit bottom right VALUE LINE 1 31122450814
03 Repair kit wishbone top VALUE LINE 2 31122450817
04 Hose clamp D= 19,4 - 22,5 1 32136756011 $1.82
05 Pipe clamp 1 32106791548
Please observe Repair Manual.
06 Repair kit bellows ZF 2 32106791561
only in conjunction with
-- Grease FB-1 100G 1 83232208093
07 Combination nut M14X1,5-10ZNNIV 2 33306787062 $1.88
