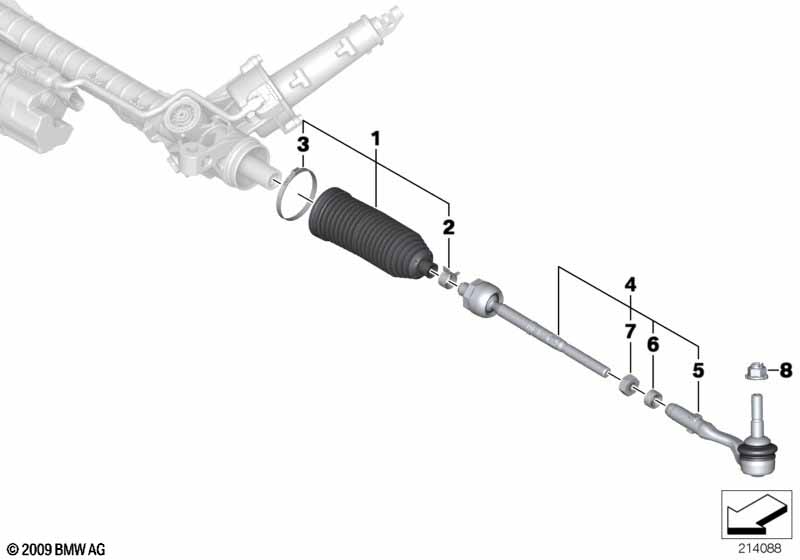

5' F11 LCI 520d Steering linkage/tie rods
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Repair kit bellows | ZF | 2 | 32106791561 | |||||
| only in conjunction with | |||||||||
| -- | Grease FB-1 | 100G | 1 | 83232208093 | |||||
| 02 | Hose clamp | D= 19,4 - 22,5 | 2 | 32136756011 | $1.82 | ||||
| 03 | Pipe clamp | 2 | 32106791548 | ||||||
| 04 | Left tie rod | 1 | 32106784716 | $149.57 | |||||
| 04 | Right tie rod | 1 | 32106784719 | $149.57 | |||||
| 05 | Ball joint, left | 1 | 32106784790 | ||||||
| Required for repair | |||||||||
| -- | Hex nut | M14X1,5MM | 1 | 32116774889 | $3.11 | ||||
| -- | Clamp ring | 1 | 32216774890 | $3.80 | |||||
| -- | Combination nut | M14X1,5-10ZNNIV | 1 | 33306787062 | $1.88 | ||||
| 05 | Ball joint, right | 1 | 32106784796 | ||||||
| Required for repair | |||||||||
| -- | Hex nut | M14X1,5MM | 1 | 32116774889 | $3.11 | ||||
| -- | Clamp ring | 1 | 32216774890 | $3.80 | |||||
| -- | Combination nut | M14X1,5-10ZNNIV | 1 | 33306787062 | $1.88 | ||||
| 06 | Clamp ring | 2 | 32216774890 | $3.80 | |||||
| 07 | Hex nut | M14X1,5MM | 2 | 32116774889 | $3.11 | ||||
| 08 | Combination nut | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | ||||
