5' F11 LCI 520d Various grommets / covers

Various grommets / covers

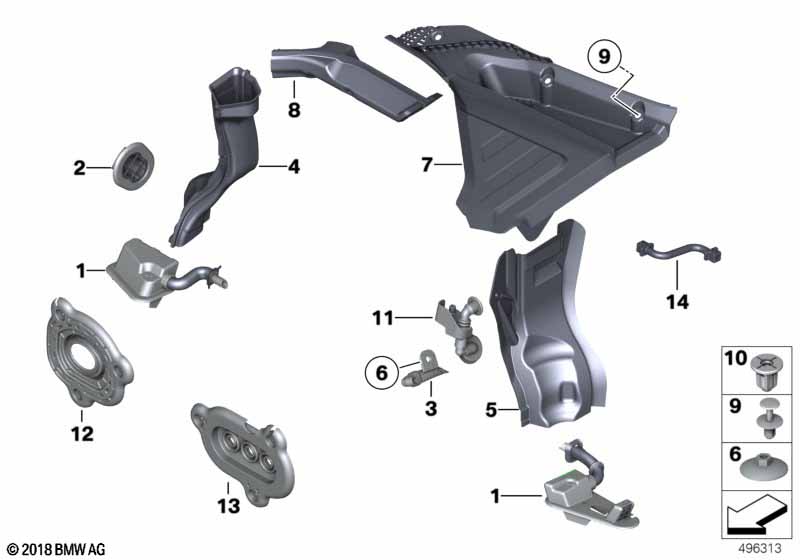

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Grommet, floor, left 1 64316987609
01 Grommet, floor, right 1 64316987610
02 Grommet 2 64316987613
03 Condensation drain tube, left 1 64119115395
03 Conddensation drain tube, right 1 64119115396
05 Water drain 1 64319188342
06 Push-button D=30MM;H=13MM 2 51481923999 $0.42
07 Cover 1 64316987606 +core
08 Air channel center 1 64319188346 ENDED
09 Expanding rivet D = 8MM 3 51471911992 $0.40
09 Expanding rivet 1 61131382239 $0.23
10 Push-type nut 1 61138353086 $0.28
11 Condensation drain tube, left 1 64119197181
11 Conddensation drain tube, right 1 64119197182
12 Sealing plate, air conditioning 1 64119115379
13 Sealing plate, heater 1 64119115380
14 Emergency water drain hose LL/RL 1 64119187291
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
