5' F11 LCI 520d Air channel

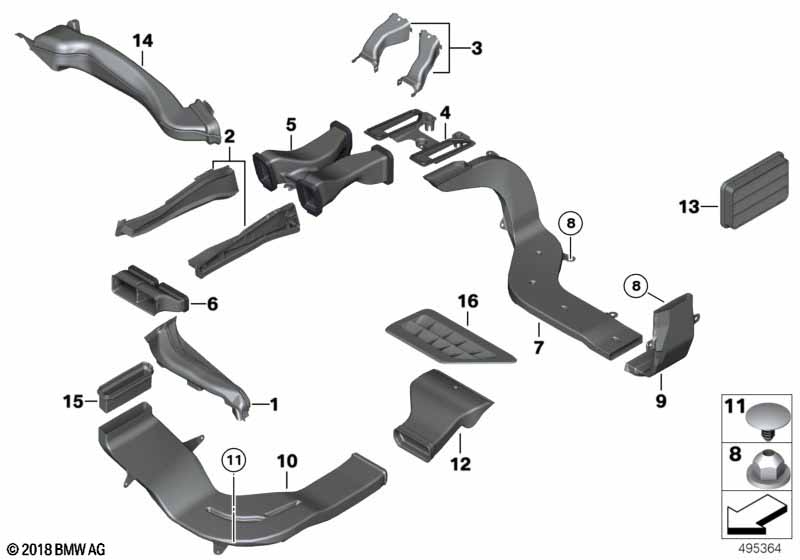

Air channel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air duct, footwell, driver's side 1 51459193001
01 Air duct, footwell, passenger side 1 64229112179
02 Package contents, cover for air duct 1 07/2013 64229216773 ENDED
02 Package contents, cover for air duct 1 64229277261
03 Package contents, air duct, rear 1 64229216772
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
03 Package contents, air duct, rear 1 64229227657
04 Adapter plate for air duct 1 51169206796
05 Air duct, center, rear 1 64229168935
06 Adapter for air duct 1 03/2016 64229113859 ENDED
06 Adapter for air duct 1 64229397743
07 Air duct, B-pillar, inner left 1 64227213299
07 Air duct, B-pillar, inner right 1 64227213300
08 Cap nut M5 2 51711934930 $0.23
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=Yes
09 Air duct, B-pillar, outer left 1 64229173393
09 Air duct, B-pillar, outer right 1 64229173394
10 Air duct, rear compartment, front left 1 64229113013 +core
10 Air duct, rear compartment, front right 1 64229113014 +core
11 Plug, black D=5MM 6 52208133466 $0.50
For vehicles with
Autom. climate control with 4-zone ctrl

S4NBA=No
12 Air duct, rear compartment, rear left 1 64229148093
12 Air duct, rear compartment, rear right 1 64229148094
13 Breather covering rear SCHWARZ 2 64226962293 $7.30
14 Cold air duct left 1 64229112662
14 Cold air duct right 1 64229112661
15 Adapter for air duct 2 64119145229
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
