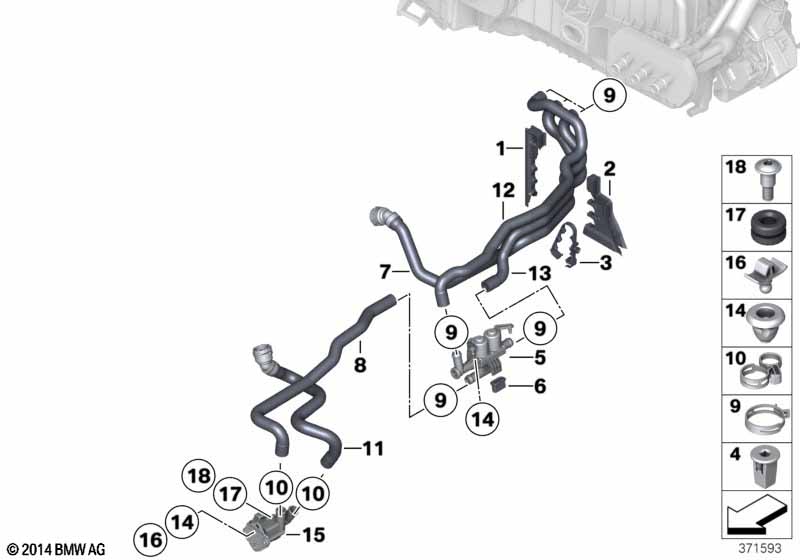

5' F11 LCI 520d Cooling water hoses
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Grommet, upper section | 1 | 64119144101 | ||||||
| 02 | Grommet bottom part | 1 | 64119119425 | ||||||
| 03 | Hose clamp, triple | 1 | 64119178439 | ||||||
| 04 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | ||||
| 05 | Water valve | 1 | 64219310349 | ||||||
| 06 | Rubber Mounting | 1 | 64118391475 | $1.03 | |||||
| 07 | Coolant hose, return | 1 | 64219332283 | ||||||
| 08 | Water hose inlet 1 | 1 | 64539119174 | ||||||
| 09 | Spring ring shell | D=25MM | 6 | 10/2006 | 64216921694 | $2.48 | ENDED | ||
| 09 | Spring ring shell | D=25MM | 6 | 64213405930 | |||||
| 10 | Hose clamp | D=27MM | 2 | 64213405913 | $1.67 | ||||
| 11 | Water hose inlet 2 | 1 | 64509170347 | ||||||
| 12 | Water hose inlet 2.2 | 1 | 64539119169 | ||||||
| 13 | Water hose inlet 2.1 | 1 | 64539119168 | ||||||
| 14 | Rubber Mounting | 3 | 64119226852 | ||||||
| 15 | Additional water pump | 1 | 64119253081 | ||||||
| 16 | Pin | 1 | 64119165735 | ||||||
| 17 | Grommet | 1 | 64128374551 | $1.98 | |||||
| 18 | Fillister head screw with collar | 1 | 07149115235 |
Notes
- ENDED = the part has been discontinued (no longer available).
