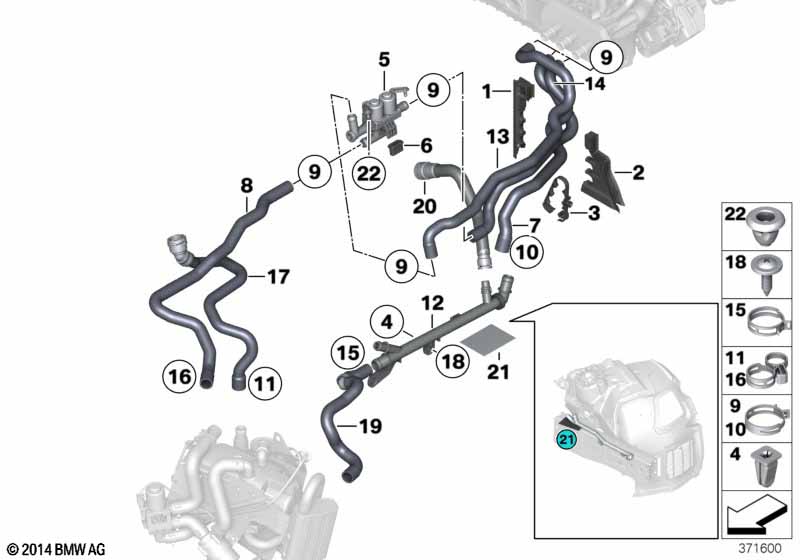

5' F11 LCI 520d Coolant hoses for auxiliary heater

Coolant hoses for auxiliary heater
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Grommet, upper section 1 64119144101
02 Grommet bottom part 1 64119119425
03 Hose clamp, triple 1 64119178439
04 Expanding nut ST 4.8 WEISS 2 63171367868 $0.60
05 Water valve 1 64219310349
06 Rubber Mounting 1 64118391475 $1.03
07 Return hose 1 64509169918
08 Hose, inlet 1 64509170345
09 Spring ring shell D=25MM 6 10/2006 64216921694 $2.48 ENDED
09 Spring ring shell D=25MM 6 64213405930
10 Spring ring shell D=28MM 1 64219174340
11 Spring ring shell D=28MM 1 64219182743
12 Coolant pipe, return line 1 64219193864
only in conjunction with
-- sealing 40X30MM 2 51718241617 $0.98
13 Water hose inlet 2.2 1 64539119169
14 Water hose inlet 2.1 1 64539119168
15 Hose clamp D=30MM 1 64219174341
16 Hose clamp D=27MM 1 64219182742
17 Hose, inlet 1 64509170346
18 Fillister head screw L=18MM 2 07147146367 $0.29
19 Return hose 1 64219193867
20 Coolant hose, return 1 64219332284
21 sealing 40X30MM 1 51718241617 $0.98
22 Rubber Mounting 2 64119226852
Notes
  • ENDED = the part has been discontinued (no longer available).
