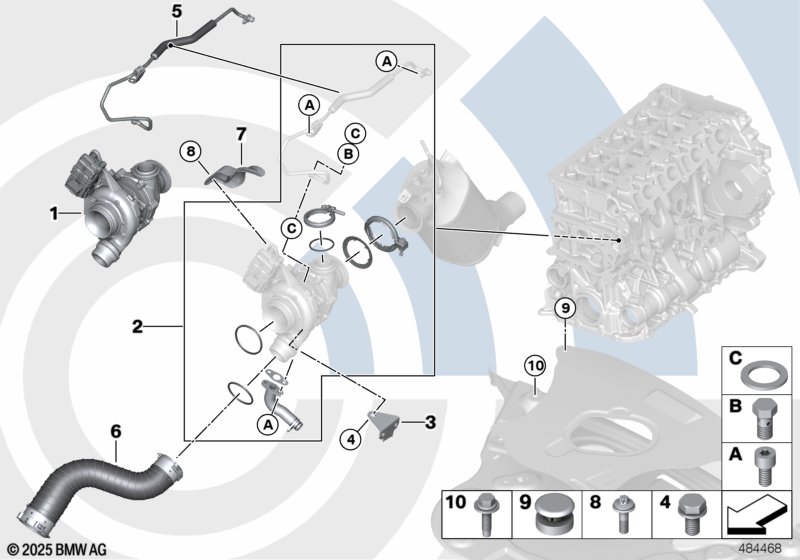

5' F11 LCI 520d Turbocharger & install kit 'Value Line'

Turbocharger & install kit 'Value Line'
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please always observe repair
instructions 11 65 020!
01 Exch. turbo charger 1 11658570083
only in conjunction with
-- Installation kit for turbocharger VALUE LINE 1 11652456228
02 Installation kit for turbocharger VALUE LINE 1 11652456228
03 Support bracket for turbocharger 1 11658513642
04 Hex bolt with washer M8X16 3 07119905528 $0.62
04 Hex bolt with washer M8X16-Z1 3 07119900268 $0.53 ENDED
05 Oil pipe inlet 1 11428513616
06 Charge air line 1 11618571896
07 Heat shield turbine housing 1 11658590003
08 ASA bolt with washer M6X12 U1 8.8 3 07119908459
Notes
  • ENDED = the part has been discontinued (no longer available).
