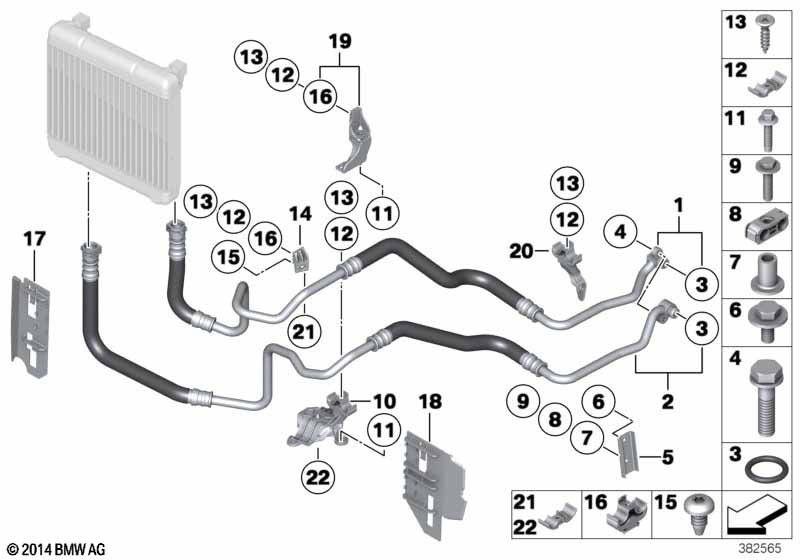

5' F07 GT LCI 550iX Engine oil cooler pipe

Engine oil cooler pipe
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooling pipe inlet 1 17227590613 +core
02 Oil cooling pipe outlet 1 17227590614 +core
03 O-ring 13,65X2,62 2 17227800958 $3.52
04 Hex bolt with washer M8X40-U1-8.8 1 07119904514 $0.49
07 Spacer sleeve 1 17227579121 $3.32
08 Pipe clip 1 17227575461 $0.42
09 Hex bolt with washer M6X30-U2-ZNS3 1 07119903994 $0.65
14 Bracket, oil cooler line 1 17227586895
15 Torx screw, self-threading M6X13-ZNNIVSI 3 31146786689
16 Pipe clip 1 17127588942 $9.75
20 Bracket, oil cooler line 1 17227586893 $12.70
21 Pipe clip 2 17127588941 $1.95
Notes
  • +core = plus core charge (possibility of a return of the old part)
