5' F07 GT LCI 550iX Cooling system water hoses, turbo

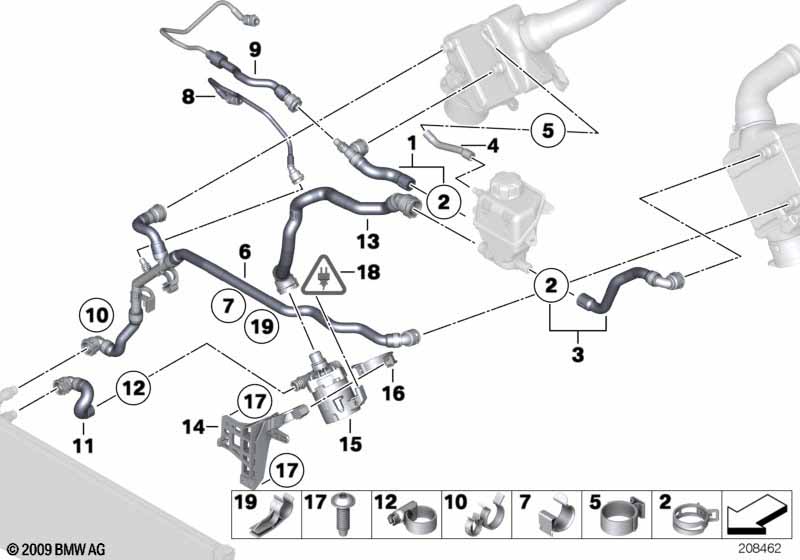

Cooling system water hoses, turbo
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coolant hose 1 17127575432 $20.98
02 Spring ring shell D=25MM 2 64213405930
03 Coolant hose 1 17127619707
04 Coolant hose 1 17127589442 $15.80
05 Hose clamp 13,2-15,7 1 34321156893 $0.58
06 Coolant hose 1 17127619726
08 Coolant hose 1 17127619723
09 Coolant hose 1 17127619698
11 Coolant hose 1 17127592652 $33.57
12 Hose clamp 23,9-27,1 1 11631716970 $0.79
13 Coolant hose 1 17127582895 $33.57
14 Bracket additional water pump 1 17117603070
15 Auxiliary water pump 1 11517566335 $366.64
16 Support 1 17117575389
17 Screw self-tapping D6X20 ZNS3 3 17117536971 $1.12
19 Clip 2 17127590890
