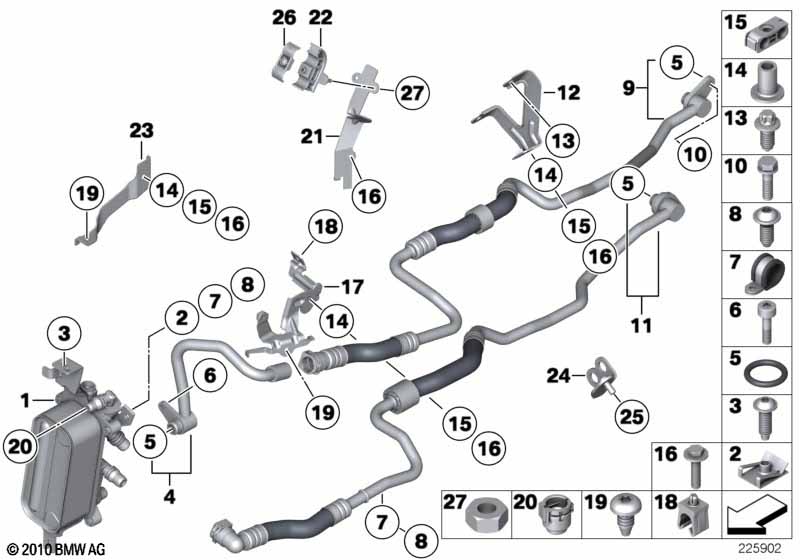

5' F07 GT LCI 550iX Heat exch./transmission oil cooler line
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Heat exchanger | 1 | 17217638580 | ||||||
| 02 | Body nut | ST6,3-4 ZNS3 | 1 | 07147144276 | $0.47 | ||||
| 03 | Screw self-tapping | D6X20 ZNS3 | 1 | 17117536971 | $1.12 | ||||
| 04 | Oil cooling pipe inlet | 1 | 17227592400 | ||||||
| 05 | O-ring | 13,65X2,62 | 3 | 17227800958 | $3.52 | ||||
| 06 | ISA screw | M6X20-8.8-ZNNIV | 1 | 07129901130 | $0.38 | ||||
| 07 | Cable holder | D=15MM | 1 | 12527575154 | $1.68 | ||||
| 09 | Oil cooling pipe inlet | 1 | 17227605011 | ||||||
| 10 | Screw | M8X28-Z3 | 1 | 17227555715 | $0.78 | ||||
| 11 | Oil cooling pipe outlet | 1 | 17227605012 | ||||||
| 14 | Spacer sleeve | 1 | 17227579121 | $3.32 | |||||
| 15 | Pipe clip | 1 | 17227575461 | $0.42 | |||||
| 16 | Hex bolt with washer | M6X30-U2-ZNS3 | 1 | 07119903994 | $0.65 | ||||
| 19 | Torx screw, self-threading | M6X13-ZNNIVSI | 2 | 31146786689 | |||||
| 21 | Bracket, oil cooler line | 1 | 17227614695 | ||||||
| 22 | Bracket, oil cooler line | 1 | 17227614697 | ||||||
| 23 | Bracket, oil cooler line | 1 | 17227594466 | $12.70 | |||||
| 24 | Bracket, oil cooler line | 1 | 17227576021 | $5.90 | |||||
| 25 | Self-locking hex nut | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | ||||
| 26 | Bracket, oil cooler line | 1 | 17227614698 | ||||||
| 27 | Hex nut | AM5-8-ZNS3 | 2 | 07129902975 | $0.36 |
