5' F07 GT LCI 550iX Transfer case single parts ATC 35L

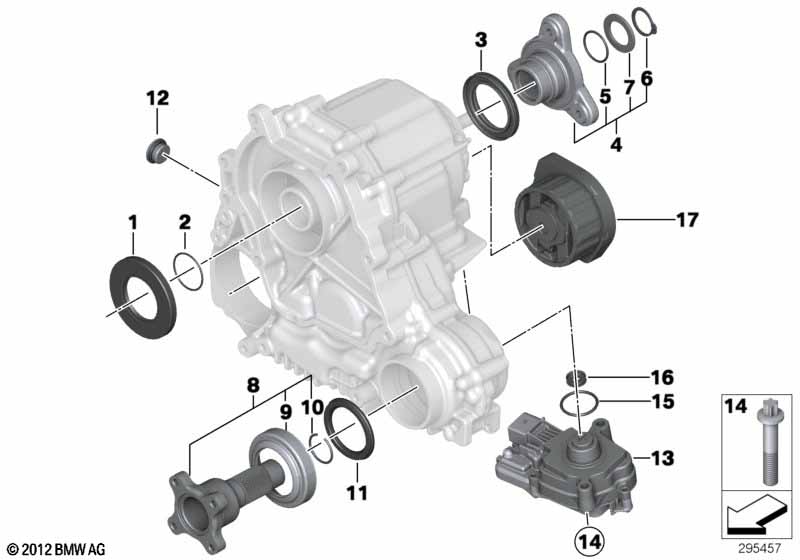

Transfer case single parts ATC 35L
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention: In the event of a warranty
case, leave the
transmission oil in the intermediate
transmission for the purposes of
possible analysis. After
the agreed-upon storage time,
drain and
dispose appropriately!
01 Shaft seal 49,6X90X8 1 27107539262 $16.37
02 O-ring 39X2 1 27107609202
03 Shaft seal 52X78X8 1 27107546667 $16.37
04 Output flange set M12X1,5 1 27107593440
05 O-ring 31X2,5 1 27107599326
06 Lock Ring 28X2 1 27107539525 $0.73
07 Spacer rings set 1 27107546670 $141.19
08 Output flange set, front 1 27107625116
09 Dustcover plate 1 27107537665 $7.84
10 Snap ring 1 27107625117
11 Shaft seal 1 27107539266 $16.37
12 Screw plug with O-ring M22X1,5-ZNS3 1 33117525064 $3.91
13 Longitudinal torque module 1 27608643153
14 ASA-Bolt M8X50-10.9 2 27107593450
15 O-ring 34X3 1 27107593451
16 Shaft seal 7.8X21X6 1 27107593452
17 Transmission bearing set 1 22326777389 $38.00 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
