5' F07 GT LCI 550iX Electron.steer. column adj./add-on parts
Sponsored links
Sponsored links

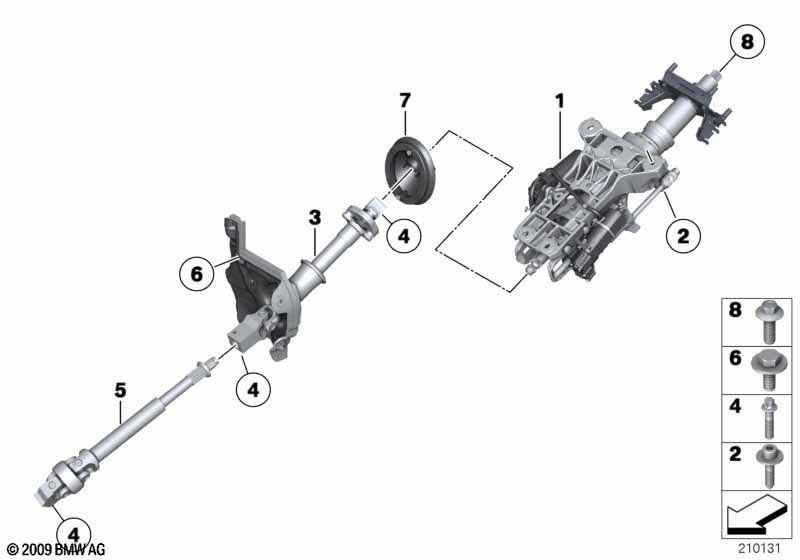

| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Steering wheel column adjustment,electr. | 1 | 32306788155 | ||||||
| 02 | Fillister head with washer | 4 | 32306766052 | $0.75 | |||||
| 03 | Lower joint assy | 1 | 32306778135 | ||||||
| 04 | Torx bolt | M8X33 | 3 | 32306778609 | $0.67 | ||||
| 05 | Swivel joint | 1 | 32306859833 | ||||||
| 06 | Hex bolt with washer | M6X16-U2-ZNS3 | 4 | 07119902913 | |||||
| 07 | Cup | 1 | 32306778137 | ||||||
| 08 | Hex bolt | M12 | 1 | 04/2014 | 32311159951 | $3.42 | |||
| 08 | Hex bolt | M12 | 1 | 04/2014 | 32306861999 |
