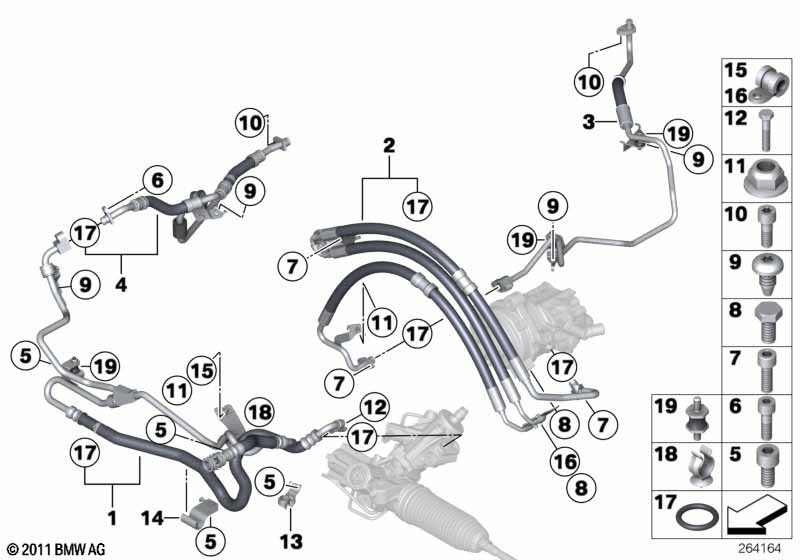

5' F07 GT LCI 550iX Power steering/oil pipe/dynamic drive

Power steering/oil pipe/dynamic drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Chassis & suspens. setup"Adaptive Drive"

S2VAA=Yes
01 Return pipe Dynamic Drive PART 1 1 32416791633 +core
02 Expansion hose Dynamic Drive TEIL 1 1 32416853949
03 Expansion hose Dynamic Drive TEIL 2 1 32416791638 +core
04 Return pipe Dynamic Drive PART 2 1 32416796371
05 ISA screw M6X12-8.8-ZNNIV 4 03/2009 07129905867
06 Fillister-head screw M8X25-10.9-ZNS3 1 04/2006 07119905833 ENDED
07 Fillister-head screw M6X18-10.9-ZNS3 5 07119906651
08 Hex bolt M6X12-8.8-ZNS3 3 07119904094 $0.11 ENDED
09 Torx screw, self-threading M6X13-ZNNIVSI 4 31146786689
10 ISA screw M8X22-ZNNIV SI 2 07129905769 $0.47
11 Self-locking hex nut M6-8-ZNNIV SI 1 07119905949 $0.24
12 Hex bolt M8X40-8.8-ZNS3 1 07119902910 $2.05
13 Return pipe bracket 1 32416791634
14 Bracket, return line 1 32416791635
15 Clamp D=10/6,4 1 12141305028 $1.58
16 Clamp D=18/6,4 1 64503450202 $3.12
17 O-ring 11X1,8 HNBR 4 32416788696 $5.00
18 Hose clamp 1 11727511099 $0.83
19 Rubber Mounting H=17 3 32416769256
only in conjunction with
-- Self-locking hex nut M6-8-ZNNIV SI 3 07119905949 $0.24
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
