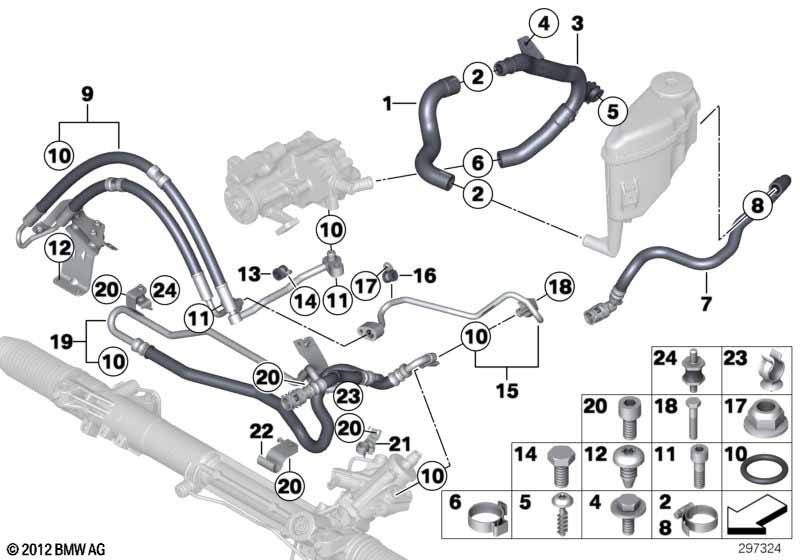

5' F07 GT LCI 550iX Hydro steering-oil pipes

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Suction pipe PART 1 1 32416799880
02 Hose clamp L16-30 2 64218367179 $1.07
03 Suction pipe PART 2 1 32416799881
04 Hex bolt with washer M6X16-U2-ZNS3 1 07119902913
05 Screw K60X22 1 11617533331 $0.75
06 Hose clamp D= 25MM 1 32416763470 $1.27
07 radiator return line 1 32416799883
08 Hose clamp L18-24 1 07129952109 $1.07
09 Expansion hose 1st part PART 1 1 32416786573 +core
10 O-ring 11X1,8 HNBR 4 32416788696 $5.00
11 Fillister-head screw M8X25-10.9-ZNS3 1 04/2006 07119905833 ENDED
11 ISA screw M8X25-10.9-ZNS3 1 07129904477 $2.00
12 Torx screw, self-threading M6X13-ZNNIVSI 2 31146786689
13 Clamp D=18/6,4 1 64503450202 $3.12
14 Hex bolt M6X12-8.8-ZNS3 1 07119904094 $0.11 ENDED
14 Hex bolt M6X12-8.8-ZNNIV 1 07119905524 $0.27
15 Expansion hose 2nd part PART 2 1 32416797192
16 Clamp D=10/6,4 1 12141305028 $1.58
17 Self-locking hex nut M6-8-ZNNIV SI 1 07119905949 $0.24
18 Hex bolt M8X40-8.8-ZNS3 1 07119902910 $2.05
19 Return pipe 1 32416797306
20 ISA screw M6X12-8.8-ZNNIV 4 07129905867
21 Bracket, return line 1 32416791635
22 Return pipe bracket 1 32416791634
23 Hose clamp 1 11727511099 $0.83
24 Rubber Mounting H=17 4 32416769256
only in conjunction with
-- Self-locking hex nut M6-8-ZNNIV SI 4 07119905949 $0.24
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
