5' F07 GT LCI 550iX Noise insulation, front II

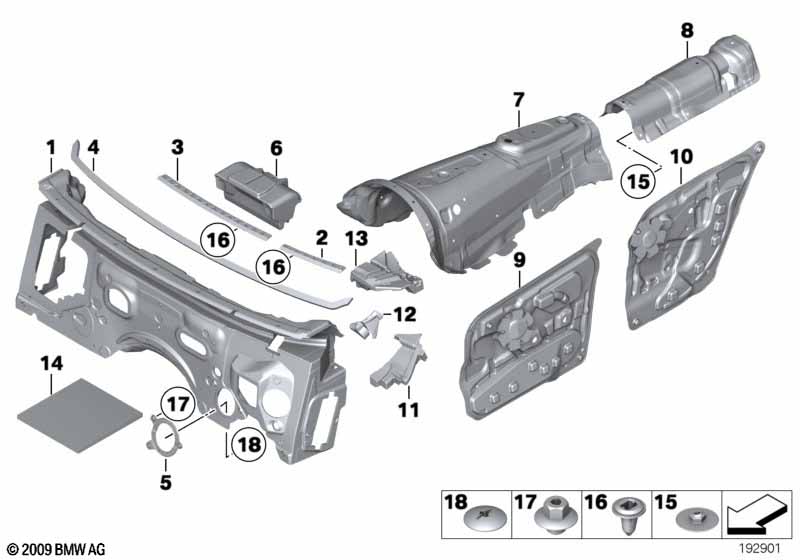

Noise insulation, front II
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Sound insulat., splash wall, upper part 1 51489163677
02 Hold.-dwn el.,sound ins.,fr.bulkh.,left 1 51489138923
02 Hold.-dwn el.,sound ins., fr.bulkh.,rgh 1 51489138924
03 Hold.-down elem.,sound insul.,fr.bulkh. 1 51489138922
04 Sound insulation windshield - windscreen 1 51489138919
05 Retainer for acoustic insulation 1 51489121688
06 Sound insulation for heater 1 51489138937
07 Sound insulation, tunnel 1 51486989305
08 Sound insulating tunnel rear 1 51489147383
09 Sound insulating door front left 1 51487261263
09 Sound insulating door front right 1 51487261264
10 Sound insulating door rear left 1 51487261261
10 Sound insulating door rear right 1 51487261262
11 Sound insulation A-column, left 1 51489134505
11 Sound insulation A-column, right 1 51489134506
12 Sound insulation, left scuttle 1 51487238847
12 Sound insulation, right scuttle 1 51487238848
13 Sound insulation A-column, left 1 51489138929
13 Sound insulation A-column, right 1 51489138930
15 Clip nut 5X9 D=30 SW10 X 07147261260
16 Clip 7 51488252749 $0.69
17 Push-button 2 17111709419 $0.33
18 Push-button, gray 9 51488126849 $0.42
