5' F07 GT LCI 550iX TV module / video switch

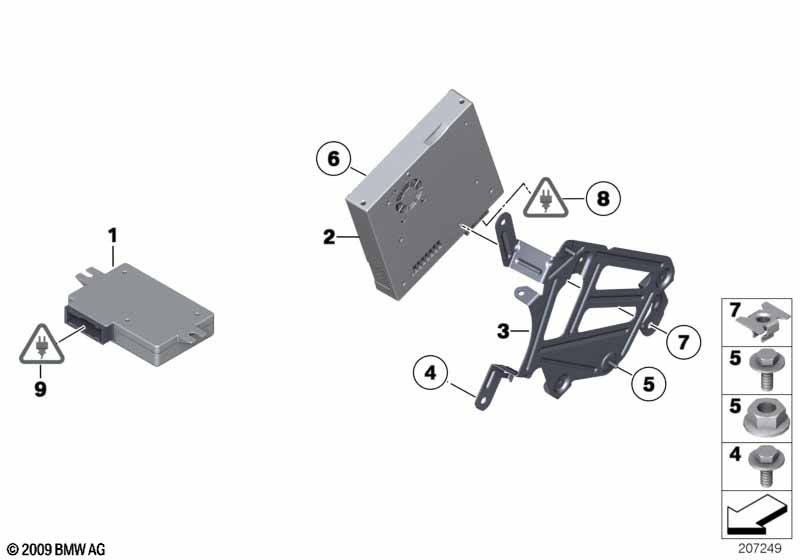

TV module / video switch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Video switch 1 65509254343
03 Bracket for TV module/camera ECU 1 65159160150
04 Hex bolt with washer M6X16-U2-ZNS3 3 09/2004 07119903997 $0.45 ENDED
04 Hex bolt with washer M6X16-U2-ZNS3 3 07119902913
05 Hex nut M6-8-ZNFE SW 2 07119904022 $0.09
06 Hex bolt M5X14 3 07119902932 $0.53
07 Prestol-cage 3 32411095443 $1.48
08 Socket housing 12 POL. 1 61138384550 $0.77
only in conjunction with
-- Contact bushing MQS with cable 0,2- 0,5 QMM X 61130005197 $1.65
-- Contact bushing MQS with cable 0,5-0,75 MM² AG X 61130056960
-- Universal socket housing uncoded 18 POL. 1 61138364666 $0.68
-- Envelope f optical waveguide 2POL. /SCHWARZ 1 61138387214 $1.83
Notes
  • ENDED = the part has been discontinued (no longer available).
