5' F07 GT LCI 535i Engine oil cooler

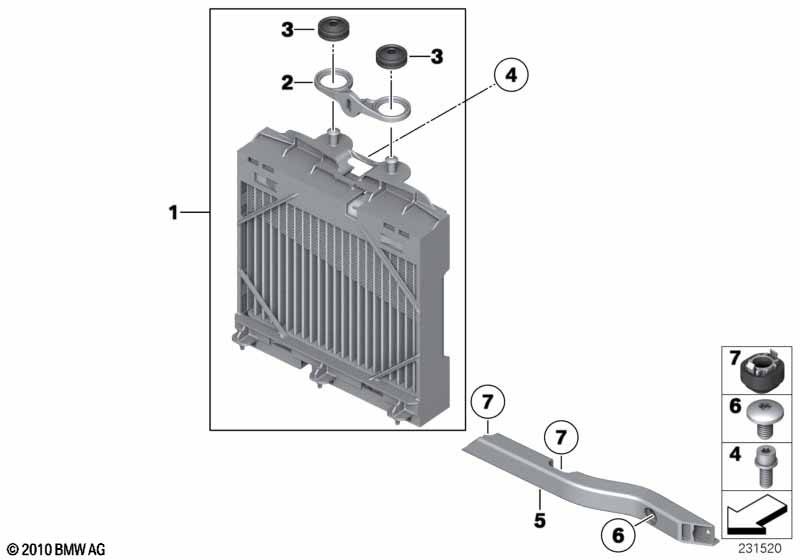

Engine oil cooler
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Hot-climate version

S823A=Yes
01 Engine oil cooler 1 17217572542 $368.00
only in conjunction with
-- Damping element 1 17117575251
02 Bracket, radiator 1 17117575253 $5.60
03 Damping element 1 17117575250 $1.85
04 Torx-bolt with washer M6X16-8.8-ZNNIV 1 07129904819 $0.38
05 Bracket right 1 17117583120
06 Torx-bolt with washer ISA M6X12 2 41617068715 $1.17
07 Damping element 1 17117575251
