5' F07 GT LCI 535i Automatic transmission GA8HP45Z

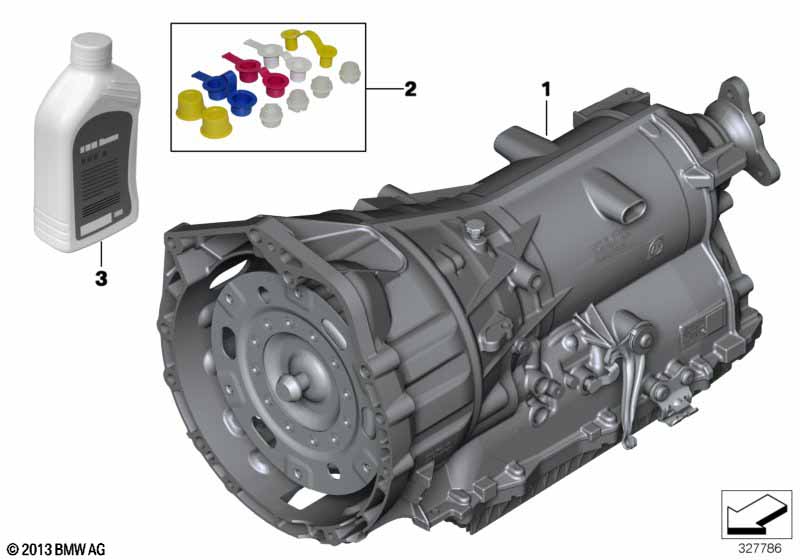

Automatic transmission GA8HP45Z
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Automatic transmission Eh GA8HP45 - ZRR 1 10/2016 24008681083 ENDED
01 Automatic transmission Eh GA8HP45 - ZTL 1 09/2017 24008684712 ENDED
01 Automatic transmission Eh GA8HP45 - Z4V 1 08/2018 24008486794 ENDED
01 Automatic transmission Eh GA8HP45 - XD9 1 24009487552
01 Exch. automatic transmission EH GA8HP45Z 1 11/2013 06/2014 24008601206
01 Exch. automatic transmission EH GA8HP45Z 1 06/2014 24008645377
01 Automatic transmission Eh GA8HP45Z - XKB 1 07/2013 08/2013 24008614181 NoS
01 Exch. automatic transmission EH GA8HP45Z 1 08/2013 24008615593
01 Automatic transmission Eh GA8HP45Z - Z2V 1 08/2013 11/2013 24008601192
01 Exch. automatic transmission EH GA8HP45Z 1 08/2013 11/2013 24008601193
01 Automatic transmission Eh GA8HP45Z - Z2Y 1 11/2013 04/2014 24008601205 ENDED
01 Automatic transmission Eh GA8HP45Z - ZY4 1 04/2014 24008623597 ENDED
01 Automatic transmission Eh GA8HP45 - ZAB 1 04/2014 07/2016 24008638257 ENDED
01 Automatic transmission Eh GA8HP45Z 1 04/2014 24008678709 ENDED
01 Automatic transmission Eh GA8HP45 - WFE 1 06/2014 24008638730 ENDED
For vehicles with
National version China

L8AAA=Yes
01 Automatic transmission Eh GA8HP45Z - Z2V 1 08/2013 11/2013 24008601192 NoS
01 Automatic transmission Eh GA8HP45 - WFE 1 06/2014 24008638730 ENDED
For vehicles with
National version China
"China only"

L8AAA=Yes
01 Exch. automatic transmission EH GA8HP45Z 1 08/2013 11/2013 24008689784
02 Set, blind plugs 1 24107604970
03 Automatic transmission fluid 3 1L X 02/2015 83222305397 ENDED
Filling quantity, see Additional
Information
03 Automatic transmission fluid 3+ 1L X 83222289720
Filling quantity, see Additional
Information
Notes
  • ENDED = the part has been discontinued (no longer available).
  • NoS = No Stock (Part, central, not in stock.)
