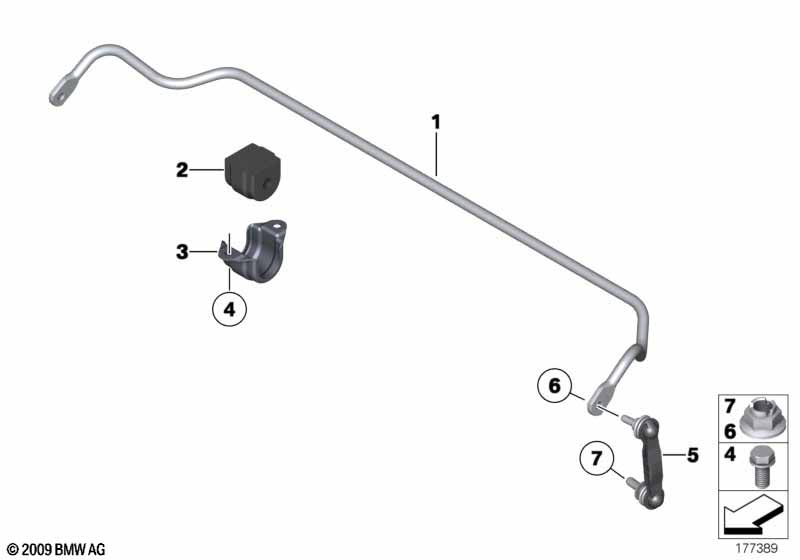

5' F07 GT LCI 535i Stabilizer, rear

Stabilizer, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Stabilizer, rear D=16MM 1 33556788860 $182.98
For vehicles with
M Sports suspension

S704A=Yes
01 Stabilizer, rear D=18MM 1 33556790184
For vehicles with
Electronic Damper Control (EDC)

S223A=Yes
01 Stabilizer, rear D=15MM 1 33556785963
02 Stabilizer rubber mounting D=16MM 2 33556788630 +core
Required for repair
-- Installation tool 250ML 2 83192405829
For vehicles with
M Sports suspension

S704A=Yes
02 Stabilizer rubber mounting D=18MM 2 33556797888 +core
Required for repair
-- Installation tool 250ML 2 83192405829
For vehicles with
Electronic Damper Control (EDC)

S223A=Yes
02 Stabilizer rubber mounting D=15MM 2 33556781649
Required for repair
-- Installation tool 250ML 2 83192405829
03 Stabilizer support 2 33556775445
04 Screw self-tapping M10X40-10.9 4 33556776944
05 Rear swing support 2 33556786429 $50.15
Required for repair
-- Hex nut wiht flange M12X1,5-10-ZNS3 4 37106789678 $0.75
06 Hex nut wiht flange M12X1,5-10-ZNS3 2 37106789678 $0.75
07 Hex nut wiht flange M12X1,5-10-ZNS3 2 37106789678 $0.75
Notes
  • +core = plus core charge (possibility of a return of the old part)
